Description
for checking and setting the engine timing
suitable for 1.8 / 2.0L VAG engines with engine code CDHB, CDNC, CFKA, CDNB
built e.g. into Audi A4 / A5 (as of 2008) / A6 (as of 2012)

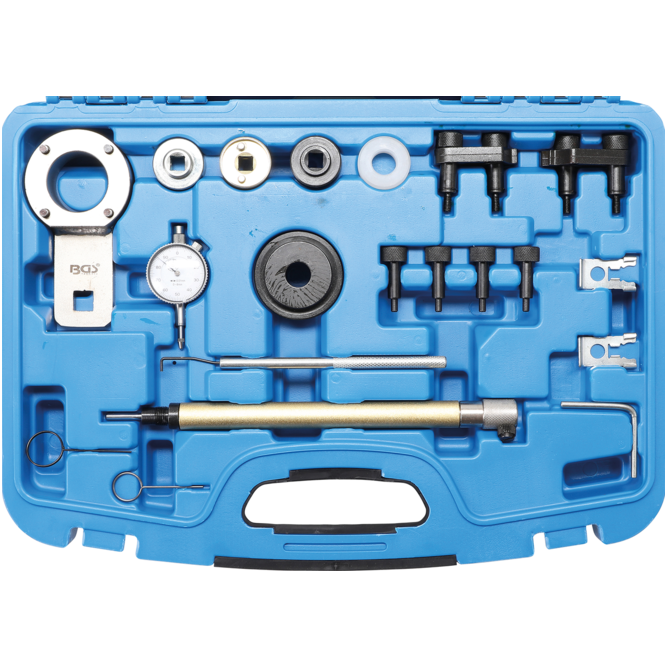

includes the following tools:

crankshaft counterholding tool, to be used as OEM T10355
crankshaft thrust piece, to be used as OEM T10368
crankshaft thrust piece, to be used as OEM T10354
camshaft locking bolt (4x), to be used as OEM T40196
chain tensioner locking clip (2x), to be used as OEM T40267
chain sprocket locking tools (2x), to be used as OEM T40271
camshaft control valve tool, to be used as OEM T10352
camshaft control valve tool, to be used as OEM T10352/1
camshaft control valve tool, to be used as OEM T10352/2
belt tensioner locking pin, to be used as OEM T10060A
tensioner locking pin (2x), to be used as OEM T40011
oil pump tensioner locking tool, to be used as OEM T40265
Technical data
To be used as OEM1 T10355 | T10368 | T40196 | T40267 | T40271 | T10352 | T10352/1 | T10352/2 | T10354 | T10060A | T40265 | T40011 | T10170 Audi
To be used as OEM2 T10355 | T10368 | T40196 | T40267 | T40271 | T10352 | T10352/1 | T10352/2 | T10354 | T10060A | T40265 | T40011 | T10170 Seat
To be used as OEM3 T10355 | T10368 | T40196 | T40267 | T40271 | T10352 | T10352/1 | T10352/2 | T10354 | T10060A | T40265 | T40011 | T10170 Skoda
To be used as OEM4 T10355 | T10368 | T40196 | T40267 | T40271 | T10352 | T10352/1 | T10352/2 | T10354 | T10060A | T40265 | T40011 | T10170 Volkswagen
