Description
for adjusting and checking engine timing on Citroen / Peugeot engines:
suitable for the following engines:
Petrol 1,0 / 1,1 / 1,4 / 1,5 / 1,6 / 1,6 16V / 1,8 / 1,8 16V / 1,9 / 2,0 / 2,0 16V / 2,0 Turbo
Diesel 1,4D / 1,4HDI / 1,5D / 1,7D / 1,7TD / 1,9D / 1,9TD / 2,0Hdi / 2,1TD 2,1TD / 2,2D / 2,5TD / 2,2Hdi
suiteable for following motorcodes:
159A, 161A, 171B, 171C, 171D, 180A, 180Z, 3FZ (EW12J4), 4HX (DW12ATED), 4HZ (DW12ATED) 6FZ (EW7J4), A8A, A9A, AJZ, B1A /E /F, B2C, B4A, B6D, B6E, BAY, BDY, BFZ, C1A, CDY, CDZ, D2A /C /E /F, D6A /B /D /E, D8A /B /C, D9B, DDZ, DFZ, DHV /W /X /Y, DJ5 (T9A), DJ5T (T8A), DJY, DJZ, DKZ, EW10J4D, EW7J4, H1A, HDY, HDZ, K1A, K1F, K1G, K2A, K2B, K2D, K3A, K6B, KDX, KDY, KDZ, KFW, KFX, KFY, KFZ, L6A, LFW, LFX, LFY (XU7JP4), LFZ, M4A, NFU, NFX (TU5J4/L3), P8A, P8B, P8C, P9A, PHZ (XUD11), R2A, R6A, R6D, RDZ, RFR, RFN (EW10J4), RFS, RFT, RFU, RFV, RFW, RFX, RFY, RFZ, RGX, RGY, RHW (DW10ATED4), RHY (DW10ATD), RHZ (DW10ATED/L), RLZ(EW10J4D), T8A/THZ (DJ5T), T9A (DJ5), THX (DJ5TED), THY (DK5ATE), TU1/2/3/5/9, TU1/3/5 (HFY, HFZ, KFX, NFZ), TU5J4/L3 (NFX), TU5JP4 (NFU), WJY (DW8B), WJZ (DW8), XU10J2C/Z, XU10J2CTE/L3, XU10J2TE/Z, XU10J4R/S (RFV/R6E/RFS), XU10J4RS (RFS), XU10J4RS (RFS), XU10-R2A, R5A, R6A, RDZ, XU5-171B, 180A, B1E, XU5-B6D/E, B1A, B1E, B2A, B2B, BDY, BDZ, XU5JP (BFZ), XU7JP4 (LFY), XU7-L6A, LFW, LFX, LFZ, XU9.D2H, D6A, D6B, D6D, DDZ, DKZ, DFZ, XU9-D2A/D, XU9J4, XUD 11 BTE (P8C), XUD11A, XUD11ATE, XUD7 (A9A), XUD7TE, XUD9 (DHY), XUD9A (D9B/DJY), XUD9AU (D8C), XUD9SD (DHW), XUD9TF (D8B), XUD9UTF (DHX), XUD9Y (DJZ)

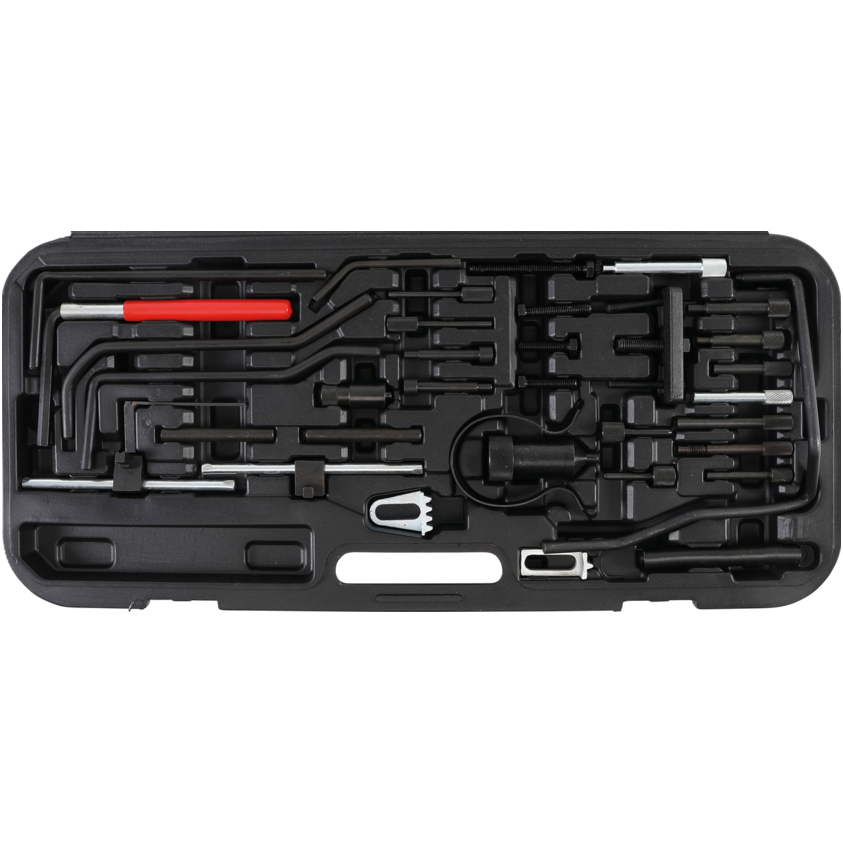

Scope of delivery:
tensioning tool, to be used as OEM 4507-TJ, 9767.89, 0188Q1, 0132X1Z, 0188Q1, 0132X1Z, 0132X
crankshaft timing pin 6 mm, to be used as OEM 4507-TA, 0132Z, 0132QZ
2 camshaft / crankshaft timing pins, to be used as OEM 0153ZY, 4507-TB, 0153AB, 9041-TZ, 0132R, 9767.27
2 camshaft timing pins, to be used as OEM 7014-TM
flywheel locking pin, to be used as OEM 4507-TL, 0189C
cranked setting pin 8 mm, to be used as OEM 0188D, 7004TG, 9767-34, 0153G, 7014-TJ. 1 860 863 000, 0153N
screws M8 x 35 mm / M8 x 40 mm / M8 x 70 mm
flywheel timing pin 7 mm, to be used as OEM 7017-TR
flywheel timing pin 8 mm, to be used as OEM 1 860 863 000, OUT0000127, 0153N, 0288D, 7099-TM, 0188Y, 0188D
flywheel timing pin with spring, to be used as OEM 0188X, 0189X
camshaft timing pin, to be used as OEM 18G 1580, 11 9 790, 5711-TD, 21-260, 07744-1110400, 303-732, 4527-T.S2, 07744-00104-00, 1 860 617 000, 0132AB, 999 7169, 0178D
injection pump timing pin, to be used as OEM 0188H
camshaft / crankshaft timing pin, to be used as OEM 0188M, 0187B, 0194B, 303-1277, MOT1430, 0189B, 303-735, 49JE01 061, 21-263
injection pump timing pin, to be used as OEM 4527-T.S1
camshaft timing pin (CA1), to be used as OEM 4533-TAC1, 0132AJ1
camshaft timing pin (CA2), to be used as OEM 0132AJ2, 2 000 023 000, 0188M, 4533-TAC2
camshaft timing pins (2), to be used as OEM 9041-TZ, 5711-TC
camshaft timing pin, to be used as OEM 0189A, 1 871 008 100
camshaft timing pin, to be used as OEM 0189AZ
inlet camshaft timing pin (VTC), to be used as OEM 0189L
tensioning lever, to be used as OEM 5711-TE, 0178E, 0188J/J1
flywheel locking tool, to be used as OEM 0188F, 0134Q, 1 870 765 001, 1 870 827 000, 0134AF, 9044-T, 1 871 000 400
tensioning lever Hdi, to be used as OEM 0188J2
tensioning wrench 8 mm, to be used as OEM 7017-TW
timing belt retaining clip, to be used as OEM 0189K, MOT1436, 4533-TAX, 0188K, 0187J, 0132AK, 0153AK, 1 870 00 100
flywheel locking tool, to be used as OEM 1 867 030 000, 0153A, 9765.54, 6012T, 1 860 161 000
pulley puller, to be used as OEM 0174, 0188P, 018892, 7015-T
Technical data
To be used as OEM1 4507-TJ | 0132X | 9767.89 | 0132X1Z | 0132Q | 5711-TA | 4507-TB | 0132R | 9767.27 | 7014-TM | 4507-TA | 0132QZ | 0189-C | 0153G | 0153Y | 0153N | 0188D | 7017-TR | 0118X | 7004-TG | 7014-TJ | 7017-TR | 0132AB | 4527-TS2 | 5711-TD | 0189-B | 5711-TC | 9041-TZ | 0188-H | 4527-T-S1 | 0132AJ2 | 0188M | 4533-TAC2 | 0132AJ1 | 4533TAC1 | 0189-A | 0189AZ | 0189-L | 0188Y | 0288D | 7099-TM | 7014-TJ | 0188P/P2 | 7015T | 0134AF | 0188F | 9044 Peugeot
To be used as OEM2 4507-TJ | 0132X | 9767.89 | 0132X1Z | 0132Q | 5711-TA | 4507-TB | 0132R | 9767.27 | 7014-TM | 4507-TA | 0132QZ | 0189-C | 0153G | 0153Y | 0153N | 0188D | 7017-TR | 0118X | 7004-TG | 7014-TJ | 7017-TR | 0132AB | 4527-TS2 | 5711-TD | 0189-B | 5711-TC | 9041-TZ | 0188-H | 4527-T-S1 | 0132AJ2 | 0188M | 4533-TAC2 | 0132AJ1 | 4533TAC1 | 0189-A | 0189AZ | 0189-L | 0188Y | 0288D | 7099-TM | 7014-TJ | 0188P/P2 | 7015T | 0134AF | 0188F | 9044 Citroen
To be used as OEM3 4507-TJ | 0132X | 9767.89 | 0132X1Z | 0132Q | 5711-TA | 4507-TB | 0132R | 9767.27 | 7014-TM | 4507-TA | 0132QZ | 0189-C | 0153G | 0153Y | 0153N | 0188D | 7017-TR | 0118X | 7004-TG | 7014-TJ | 7017-TR | 0132AB | 4527-TS2 | 5711-TD | 0189-B | 5711-TC | 9041-TZ | 0188-H | 4527-T-S1 | 0132AJ2 | 0188M | 4533-TAC2 | 0132AJ1 | 4533TAC1 | 0189-A | 0189AZ | 0189-L | 0188Y | 0288D | 7099-TM | 7014-TJ | 0188P/P2 | 7015T | 0134AF | 0188F | 9044 Fiat
To be used as OEM4 4507-TJ | 0132X | 9767.89 | 0132X1Z | 0132Q | 5711-TA | 4507-TB | 0132R | 9767.27 | 7014-TM | 4507-TA | 0132QZ | 0189-C | 0153G | 0153Y | 0153N | 0188D | 7017-TR | 0118X | 7004-TG | 7014-TJ | 7017-TR | 0132AB | 4527-TS2 | 5711-TD | 0189-B | 5711-TC | 9041-TZ | 0188-H | 4527-T-S1 | 0132AJ2 | 0188M | 4533-TAC2 | 0132AJ1 | 4533TAC1 | 0189-A | 0189AZ | 0189-L | 0188Y | 0288D | 7099-TM | 7014-TJ | 0188P/P2 | 7015T | 0134AF | 0188F | 9044 Lancia
Gross weight 3610 g
