PANEL CUTTING GUILLOTINE 230 MM

Max. cutting length
230 mm
Max. cutting thickness
15 mm
Length
650 mm
Worktop dimensions
650x460 mm
Material
aluminium, HSS W5
Surface finish
powder coated
Cutting angle in the horizontal plane
15, 22.5, 30, 45 ˚
Foldable
no
Application
floor panels

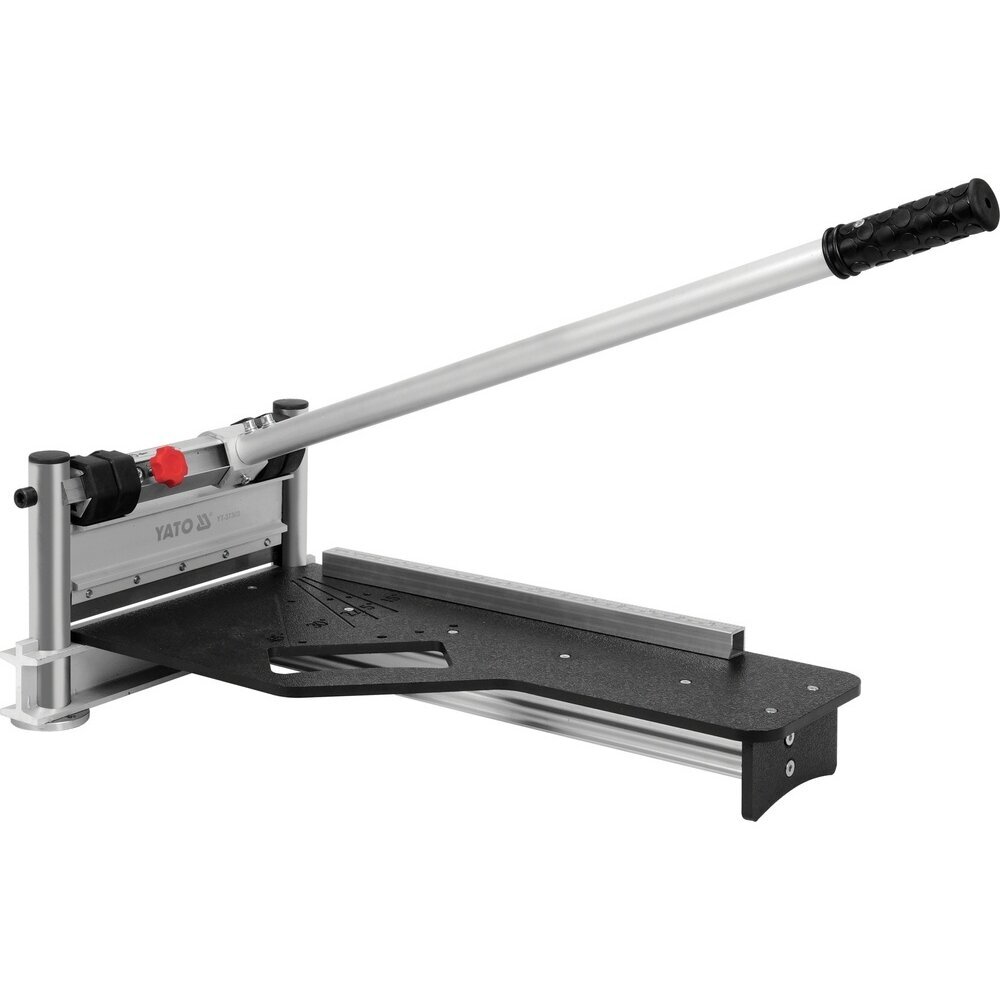

A guillotine for cutting floor panels, with a cutting width of 230 mm and a maximum material thickness of 15 mm. The guillotine knife is mounted in aluminium profiles, mounted on vertical, steel plinths. The pressure arm is approximately 650 mm long. The worktop is made of hard, wear-resistant plastic and measures 460 mm x 650 mm. The worktop has a built-in angle that allows cutting at angles of 15°, 22.5°, 30° and 45°.

The guillotine is designed for cutting floor panels, vinyl panels, parquet, rubber, foam, PVC, VCT tiles and more. To use the device, place the material to be processed on the worktop, between the plinths that secure the knife. Then, gently press the lever, lowering the blade onto the material and pressing to cut off the desired fragment. Due to the exceptional sharpness of the knife, special care must be taken when working.

maximum cutting length: 230 mm
maximum cutting thickness: 15 mm

length: 650 mm
worktop dimensions: 650 x 460 mm
horizontal cutting angle 15°, 22.5°, 30° and 45°
replaceable HSS W5 steel cutting blade
