Description

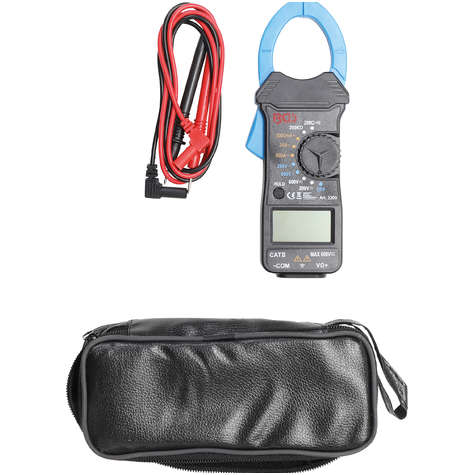

LCD display, 3 1/2-digit (up to 1999 count)
reading rate: 3 reading/sec
polarity indication
overload indication
dimensions: (L x W x H) 193 x 73 x 25 mm
weight: 145 g (incl. battery)
power requirements: 2 x 1.5V (AAA)
incl. storage bag, 2 measuring cables and 2 batteries

measuring ranges:

DC voltage: 200 V / resolution: 100 mV, 600 V / resolution: 1 V
AC voltage: 200 V / resolution: 100 mV, 600 V / resolution: 1 V
AC current: 2000 mA / resolution 1 mA, 20 A / resolution 10 mA, 600 A / resolution 1 A
resistance (Ohm): 200 Ohm / resolution 0.1 Ohm , 200 KOhm / resolution 100 Ohm

Technical data
Gross weight 300 g
