Torque adjustable open-end wrench with adjustable clamping width

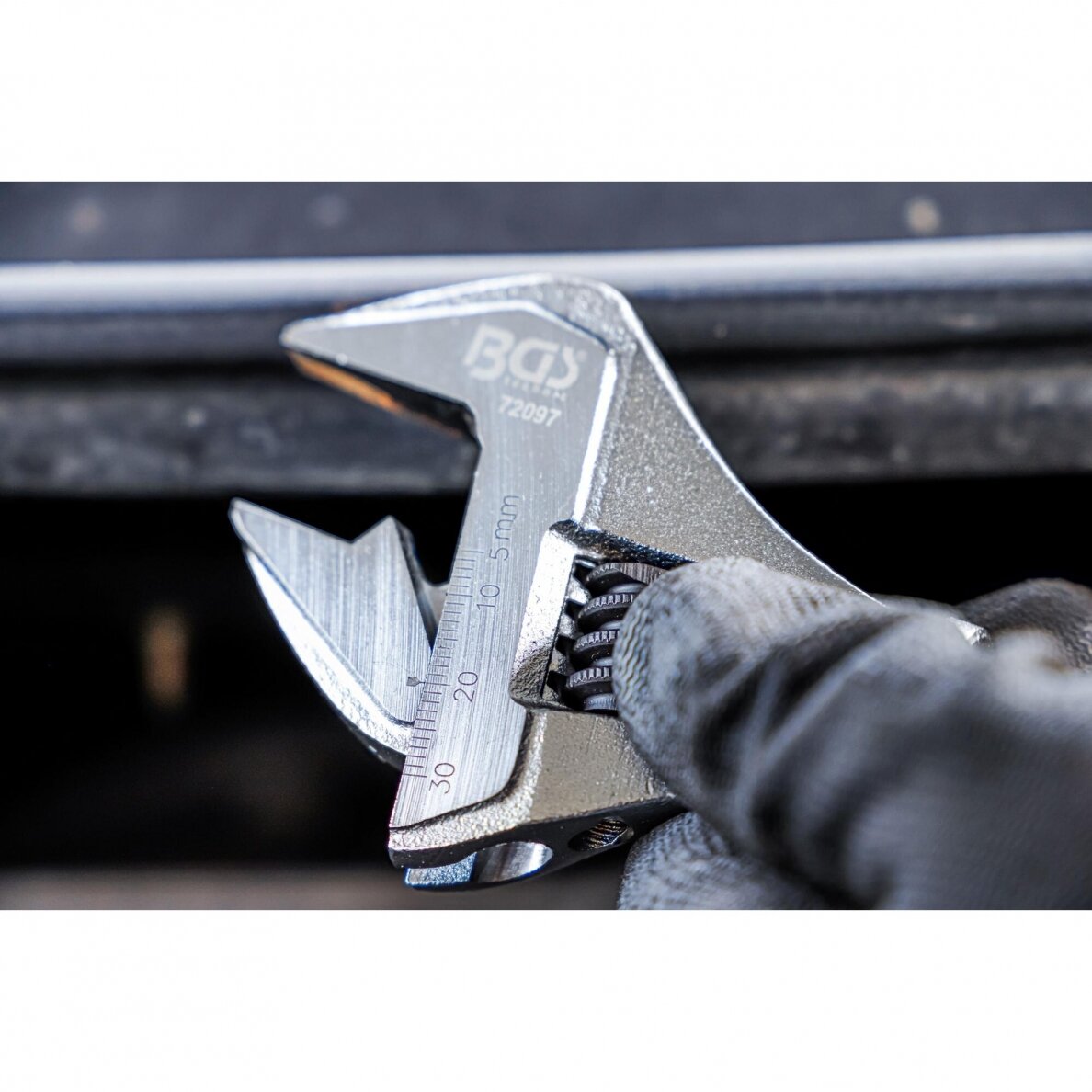

with millimetre scale
for simple and precise measurements and applications in the industry and automotive sector
robust and adjustable steel jaws
settings for torque, unit, mode, data storage, data deletion
double-sided operation, clockwise and counterclockwise
acoustic signal tone as well as LED indicator for presettable target torque value
laterally perceptible LED bar with 6 LEDs for visual alerting
easy to set up Peak or Track modes
automatic shutdown (auto standby) when not in use
internal data memory for 50 measured values
memory for 6 often used values
insertion tool external square: 9 x 12 mm
torque ranges: 4.2 - 85 Nm / 3.1 - 62.7 ft-lb / 37 - 752 in-lb / 43 - 867 kg-cm
accuracy: +/- 2% (right) / +/- 3% (left) for torque range: 17 - 85 Nm / 12.5 - 62.7 ft-lb / 150 - 752 in-lb / 173 - 867 kg-cm
resolution: 0.1 N-m / 0.1 ft-lb / 1 in-lb / 1 kg-cm
units of measurement: N-m / in-lb / ft-lb / kg-cm
working modes: Peak hold / Track
batteries: 1.5 V AAA (x2) (not included in scope of delivery)
Technical data
Wrench size 5 - 30 mm
Gross weight 1266 g
Max. torque 4,2 Nm
Min. torque 85 Nm
Operating temperature -10 - 60 °C
Storage temperature -20 - 70 °C
Humidity 15 - 90 %
