Product description

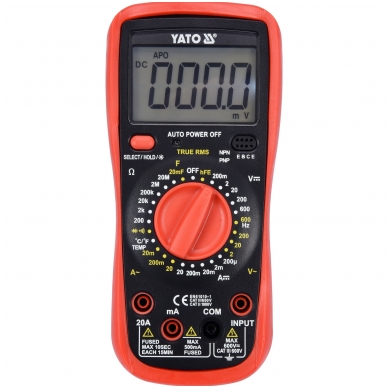

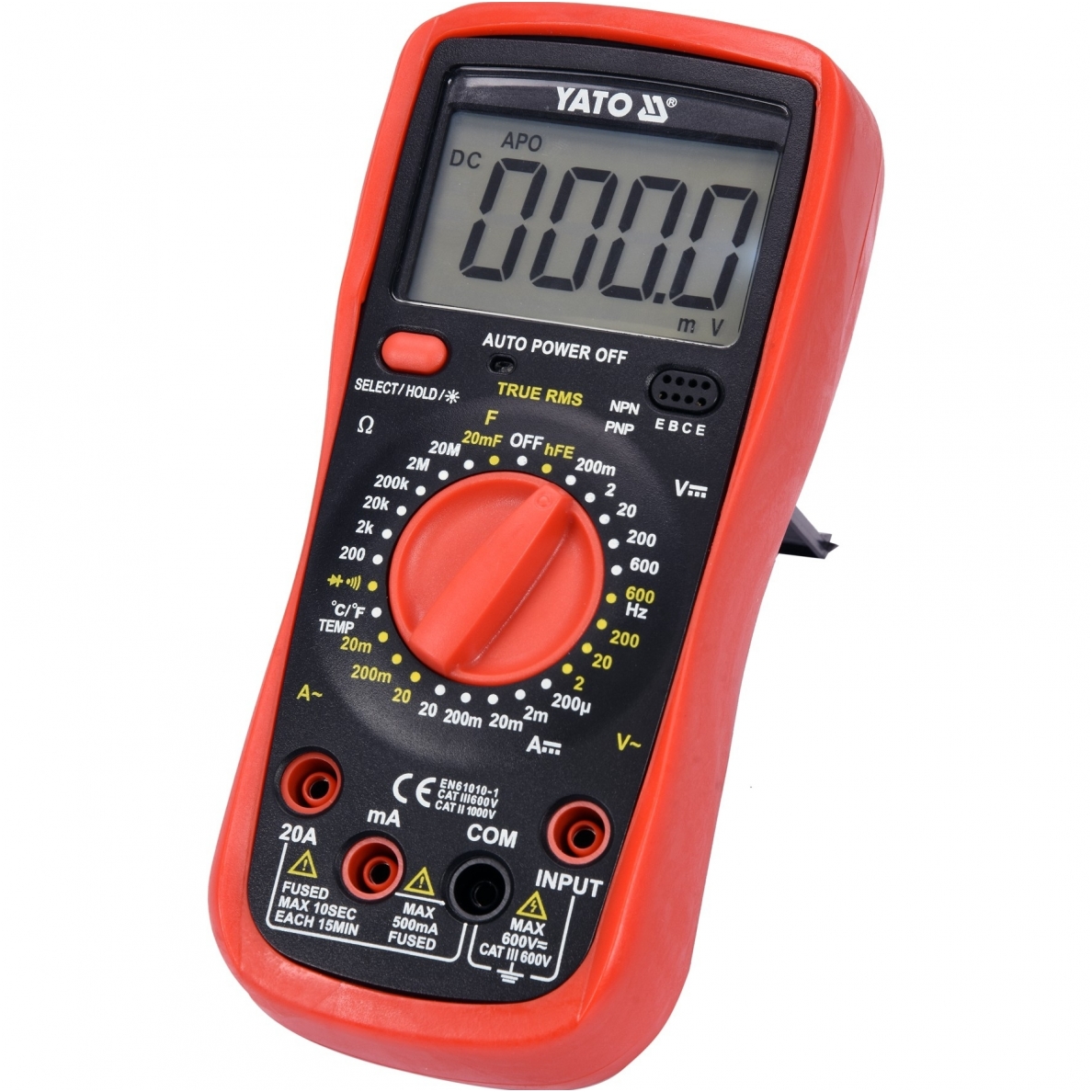

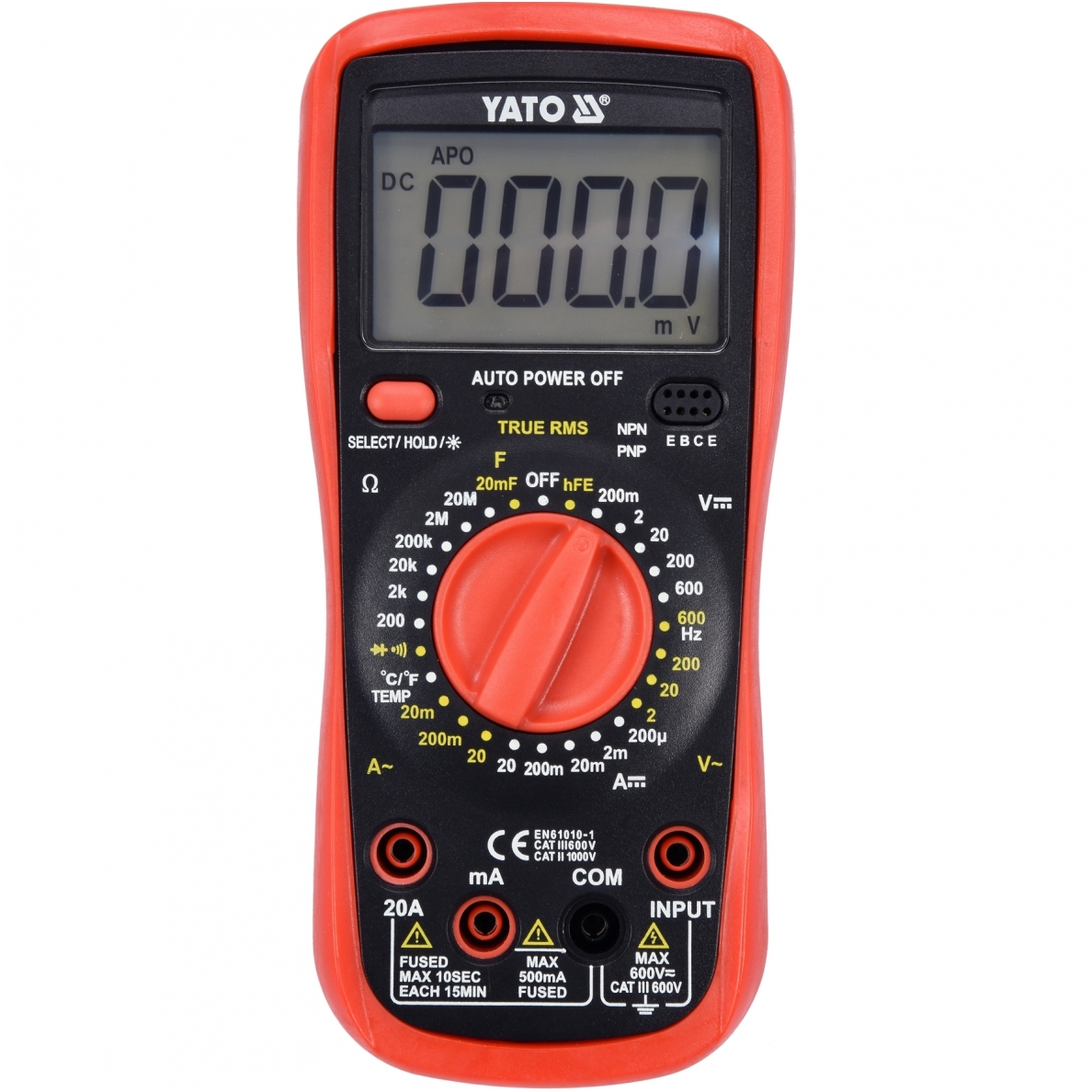

Multifunctional digital meter brand YATO YT-73083 TRUE RMS.

The digital meter is particularly useful in diagnosing and detecting defective components of electrical installations.

The device allows the measurement of current and AC voltage TRUE RMS. This means that the true effective value of the alternating waveform is measured. If a waveform with a non-sinusoidal characteristic curve is subjected to the measurement, the true effective value of the waveform will be given.

It allows measuring:

alternating voltage: U a.c. 2 V, 20 V, 200 V, 600 V TRUE RMS
DC voltage: U d.c. 200 mV, 2 V, 20 V, 200 V, 600 V
alternating current: I a.c. 20 mA, 200 mA, 20 A TRUE RMS
direct current: I d.c. 200 μA, 2 mA, 20 mA, 200 mA, 20 A
resistance: R 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ
capacity: C 20 nF - 20 mF (automatic range)
frequency: f 0-60 MHz (automatic range)
temperature: T -40OC ÷ + 1000OC
diode test: IF 1 mA, UR 1.5 V
transistor test: hFE PNP, NPN
the audible signal allows easy verification of the continuity of the circuit.
The YATOL YT-73083 multimeter possesses an LCD display that allows displaying the maximum result of 1999. Its unique advantage is the possibility of backlighting in blue, which makes it much easier to read the measured parameters in dark rooms. In addition, the DATA HOLD function allows you to keep the currently measured value on the display.

The meter is powered by a 9V battery (6F22). Thanks to the AUTO-POWER OFF function, the device will automatically switch off after 15 minutes of inactivity, which saves battery life and extends its life.

The device has a self-resetting fuse.

Aesthetically made rubber housing primarily protects it against mechanical damage, and at the same time increases the comfort of use. In addition, there is a pull-out support at the back that allows you to position it in a position that makes reading data easier.

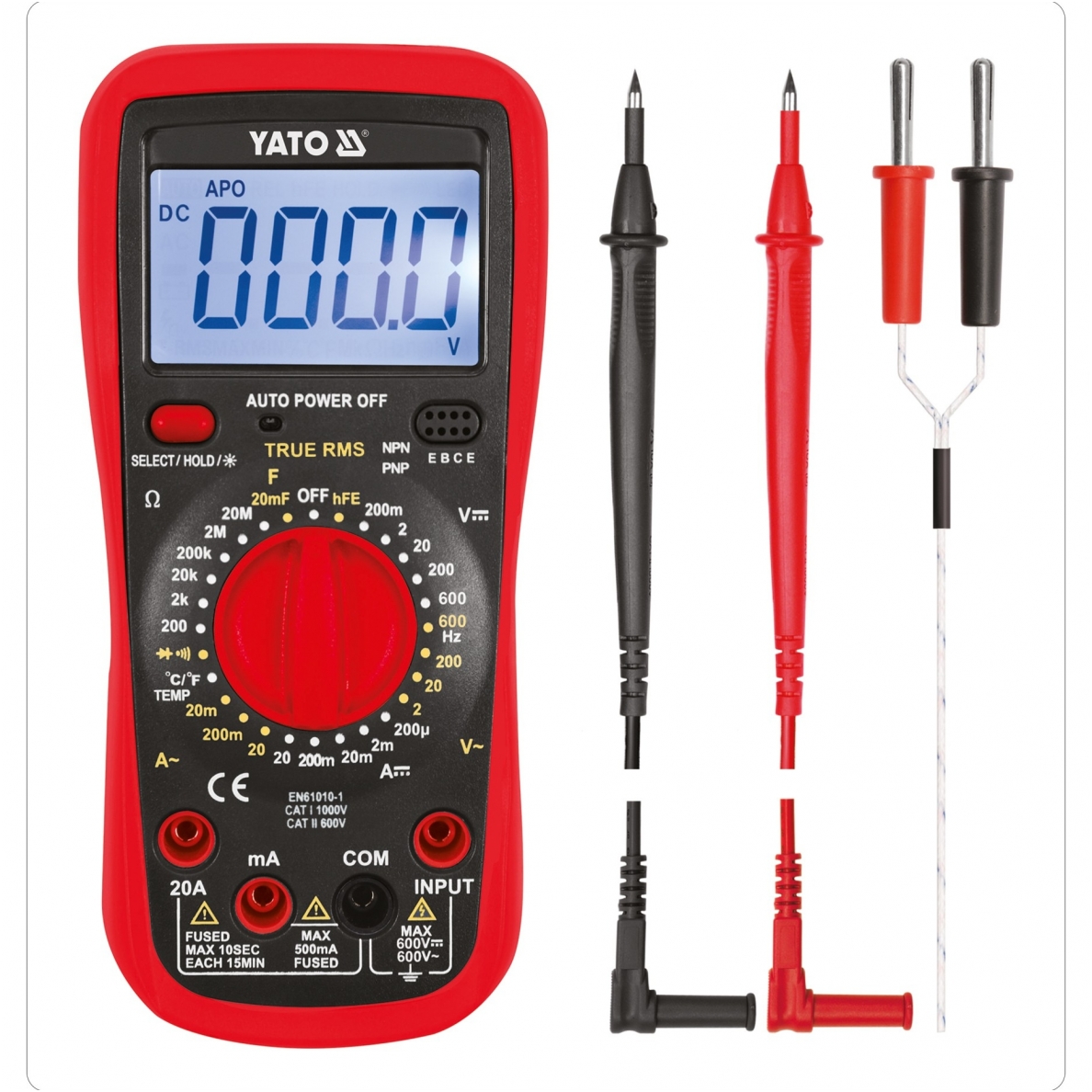

The set includes test leads and thermocouple.

Technical data
Index number YT-73083
EAN 5906083042560
Brand Yato
Frequency measurement 0-60MHz
Measurement of hFe PNP transistor, NPN
Measurement of alternating voltage 0-600V
DC voltage measurement 0-600V
Capacity measurement 20n-20mF
Resistance measurement 0-20M OHM
Temperature measurement -40 - +1000
Alternating current 0-20A
Direct current 200u-20A
Circuit continuity test YES
Diode test YES
