Product description

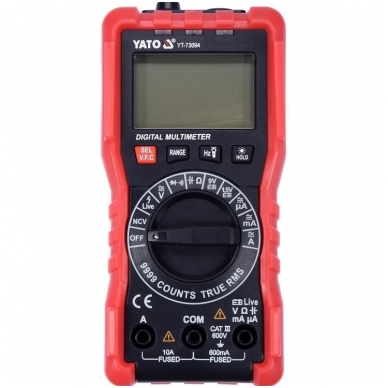

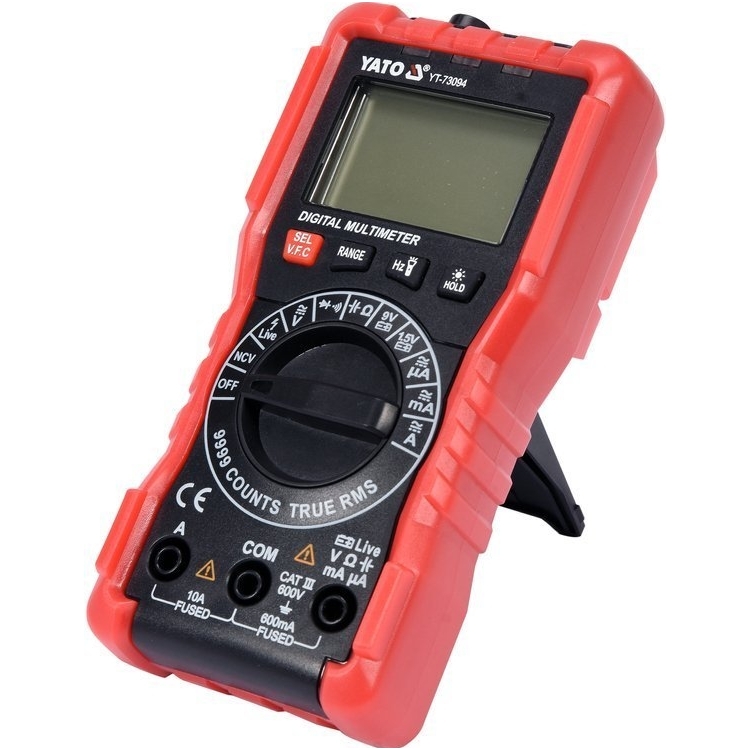

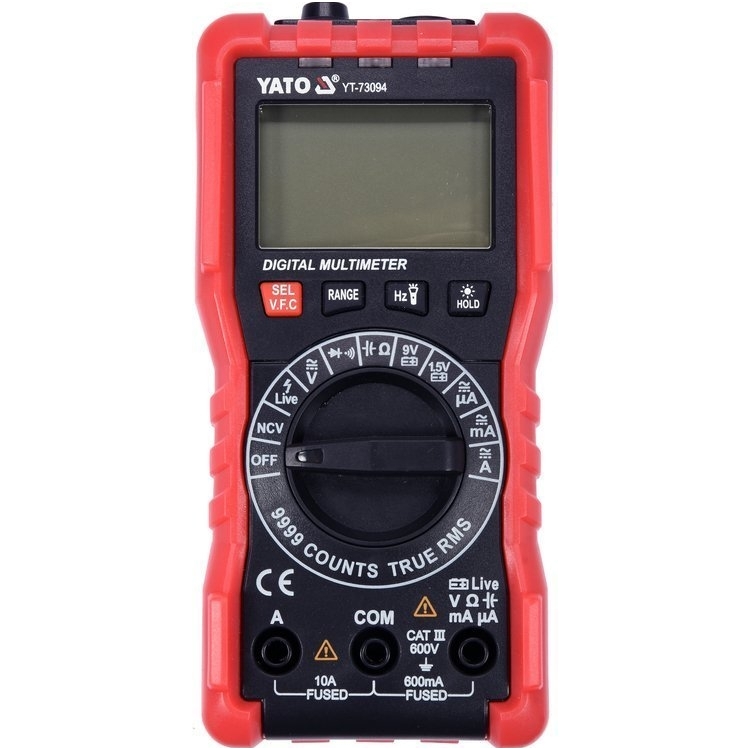

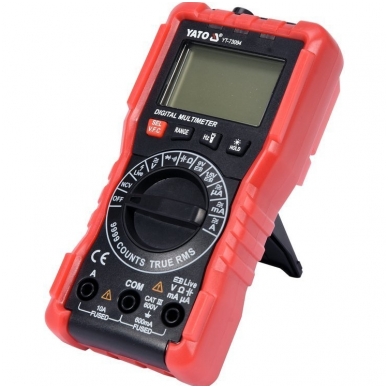

An electric meter designed for measuring AC and DC voltage and current. It also allows you to measure other values, including resistance, capacity and checking the operation of the diodes. This is especially useful when detecting faulty components of electrical installations.

automatic adjustment of the measuring range
AC voltage measurement: U a.c. 600 V (TRUE RMS)
DC voltage measurement: U d.c. 600 V.
DC current measurement: I d.c. 600 mA, 10 A
AC measurement: I a.c. 600 mA, 10 A
variable frequency voltage measurement
resistance measurement: R 9.99 MΩ
capacity measurement: C 0-99.99 mF (automatic range)
frequency measurement: f 10 Hz - 60 kHz (automatic range)
diode test: UR = 3.3 V
continuity test
battery test: 1.5V, 9V
sampling frequency: 2-3 times / sec.
overload protection
the sound signal allows easy verification of circuit continuity
auto power off function
backlit LCD display with the function of saving measured values
flashlight function
low battery indicator
the rubber housing protects the multimeter against mechanical damage

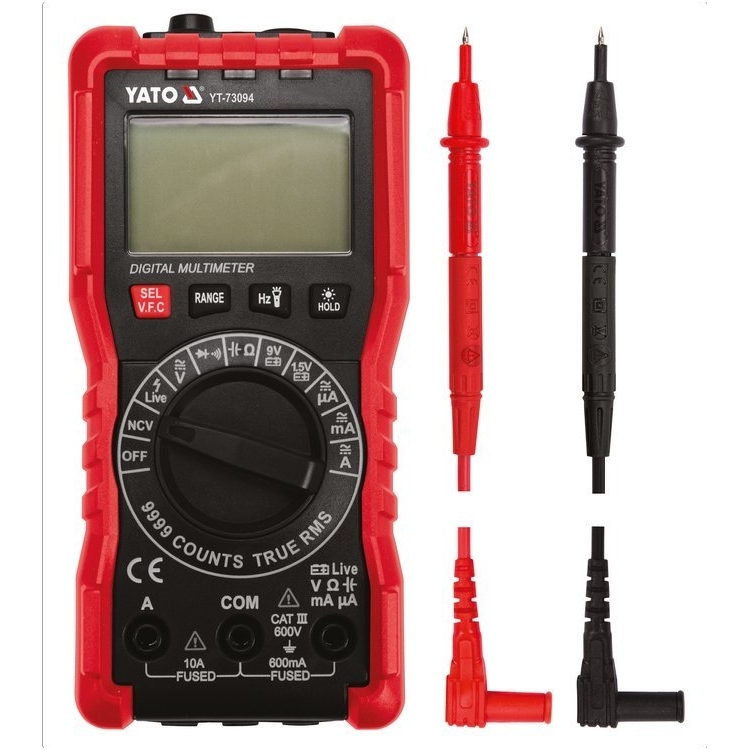

in the set: 2 test leads
