Description

suitable for 6 & 12 volt batteries (lead acid, gel, wet cell, MF, VRLA, AGM and deep cycle batteries)
menu-driven, intuitive operation
automatic control of the entire test procedure through menu navigation
for the quick and simple determination of battery efficiency while taking the temperature
compensation into account

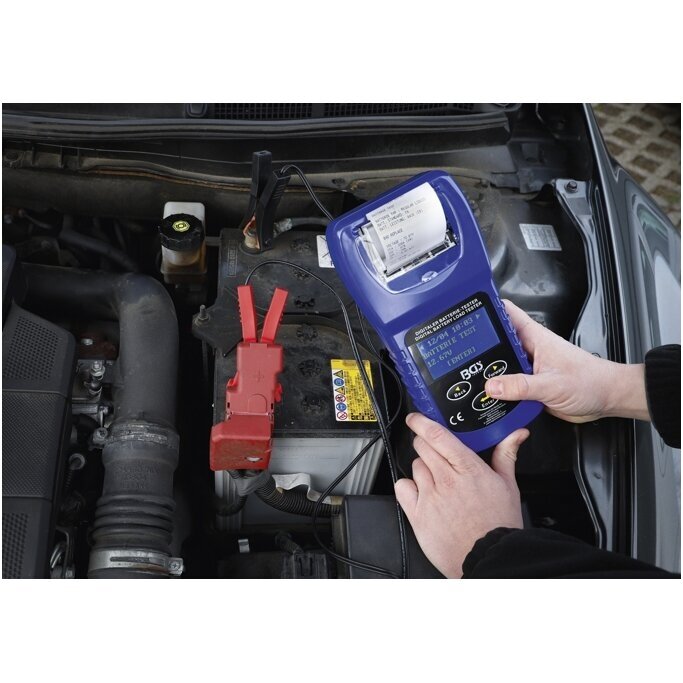

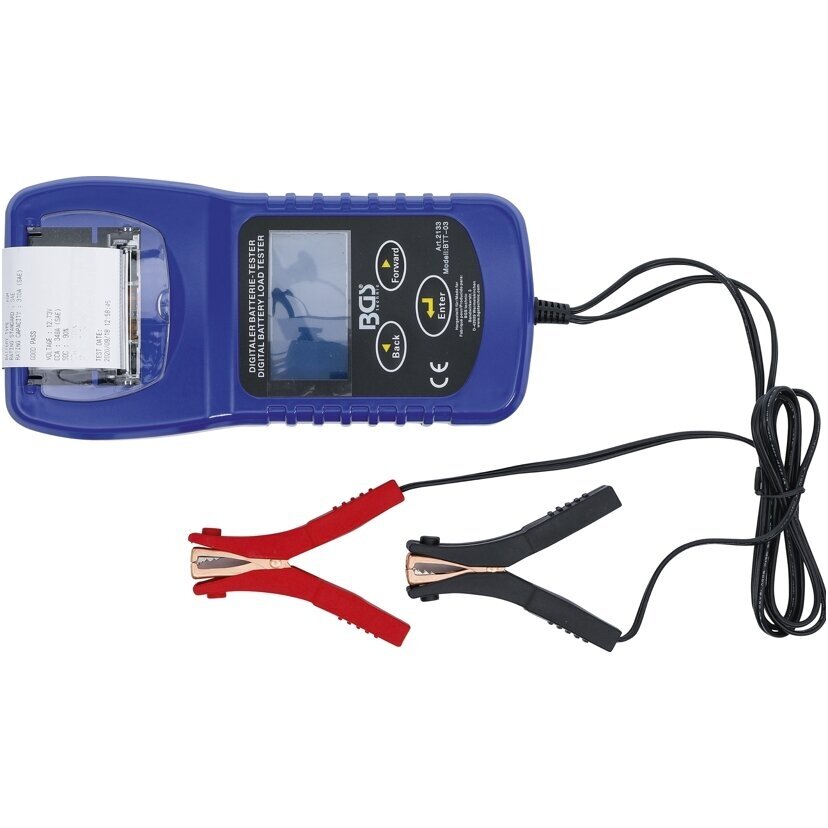

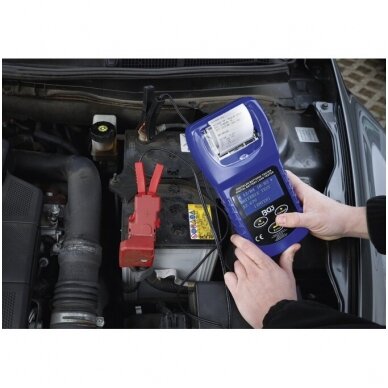

to be connected to the battery via two plastic-coated crocodile pole clamps
allows professional tests of:
6 & 12 volt batteries incl. battery internal resistance measurement (tolerance: 5%)
12 & 24 volt starting systems
12 & 24 volt charging systems
voltage range: 1.5 - 30 volts (tolerance: 0.1 V)
multi-standard test: SAE, DIN, EN, IEC, CA, JIS
work area SAE: 40 ~ 2000 CCA
work area IEC: 30 ~ 1500 CCA
work area EN: 40 ~ 2100 CCA
work area DIN: 25 ~ 1500 CCA
work area CCA: 240 ~ 1440 CCA

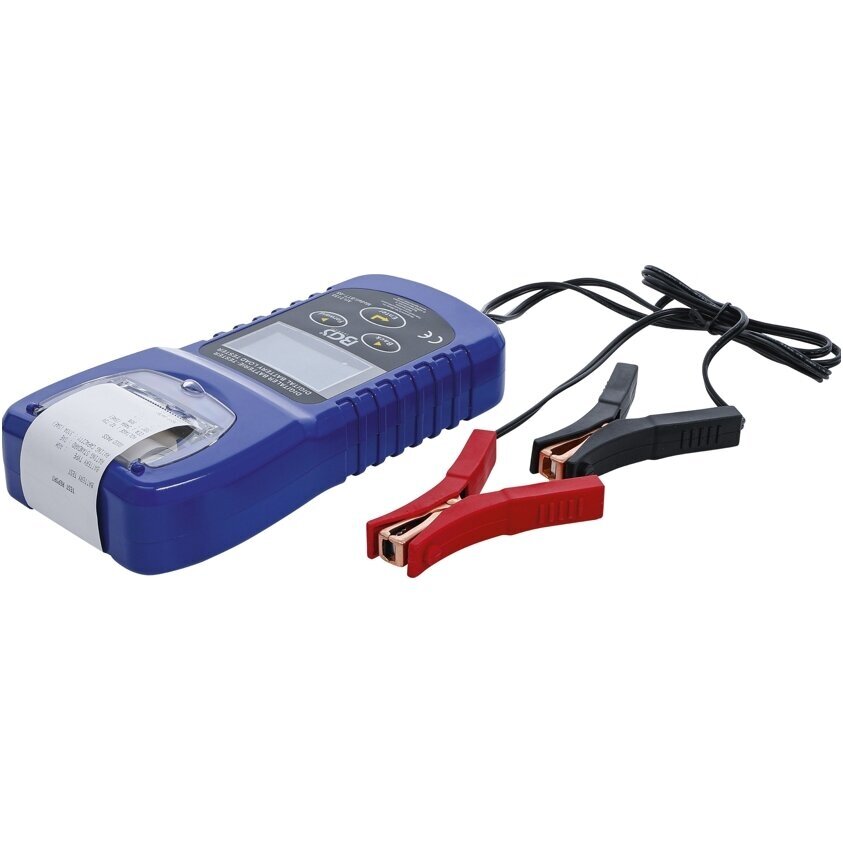

thermal printer to print out the test results
display type: 66 x 33 mm LCD
battery type: 6 x 1.5 V AA
languages: English, French, German, Espanol, Portugues

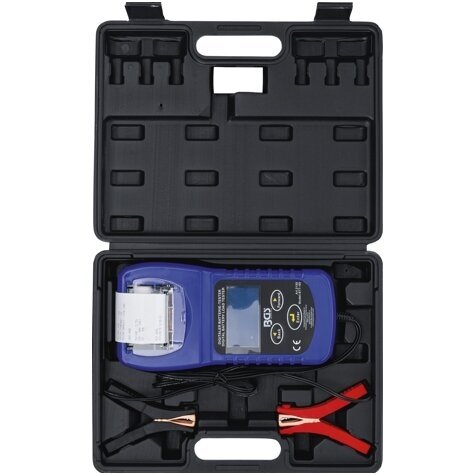

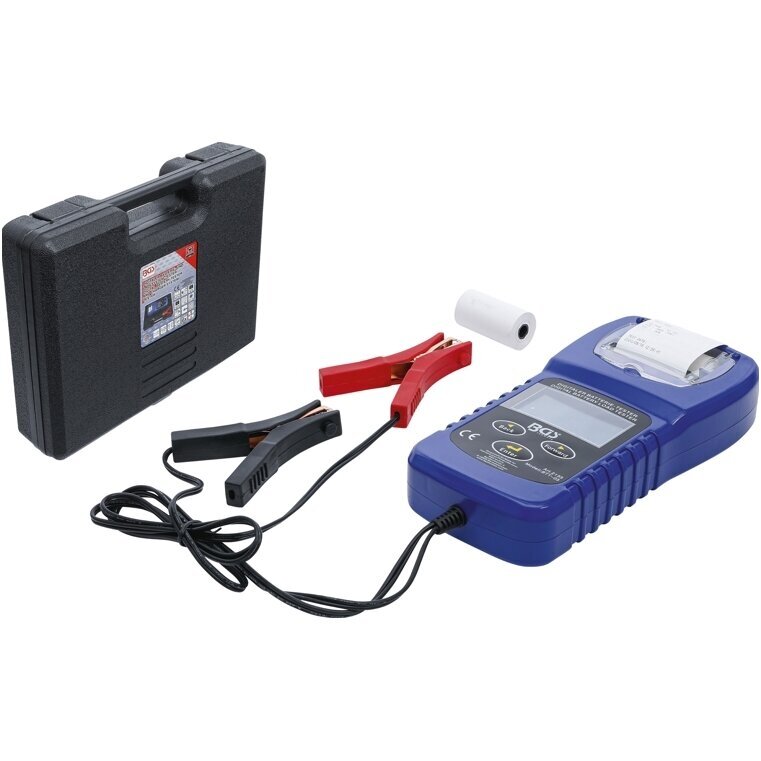

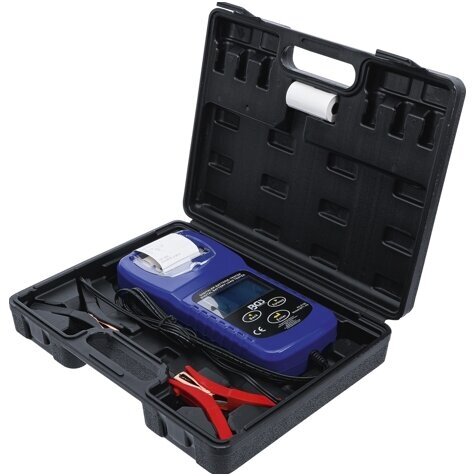

scope of delivery:

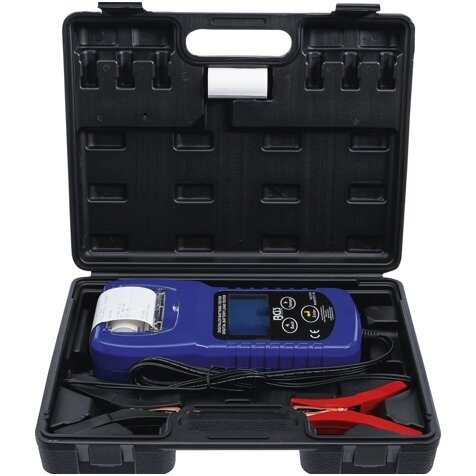

battery-, charging- and starting system analyzer
2 rolls of printer paper, width: 58 mm, length: 10 m
6 batteries, type 1.5V AA

Technical data
Gross weight 1578 g
Operating temperature 0 - 50 °C
