Product description

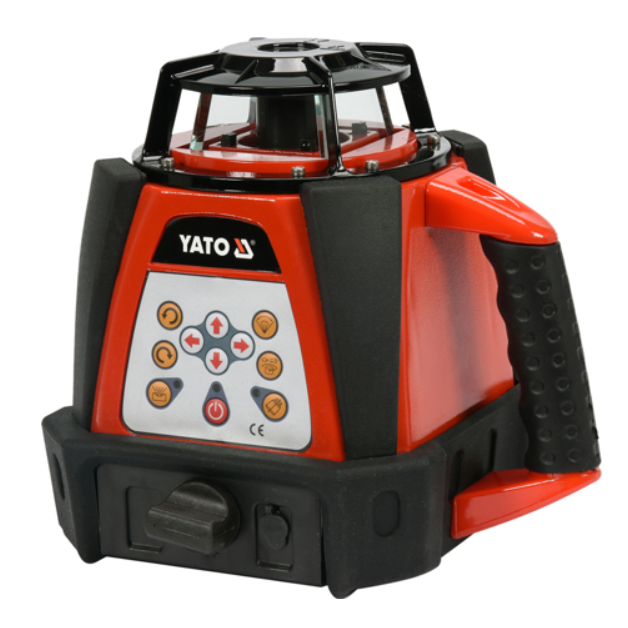

Precise and easy to use rotary laser. Used during construction, finishing and construction works, eg pouring concrete slabs, leveling ballast for roads and parking lots, leveling wall corners.

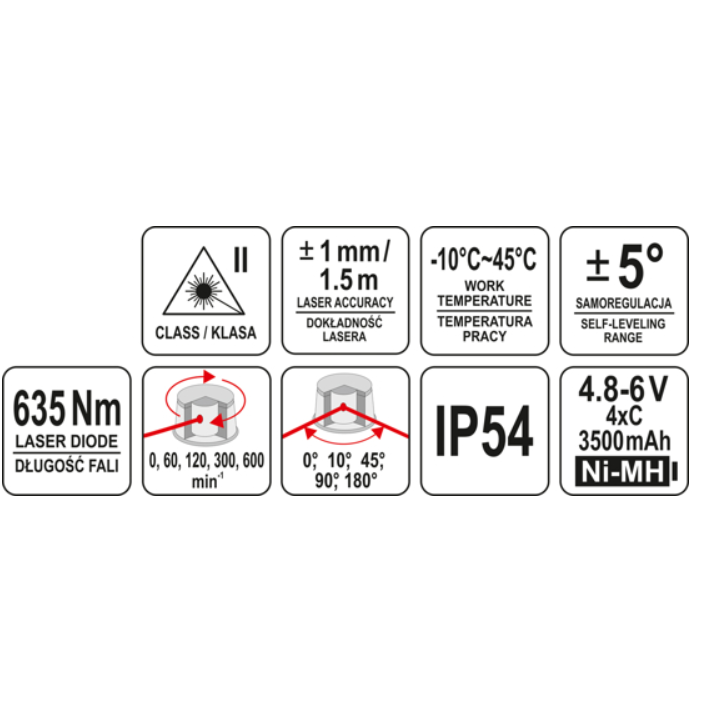

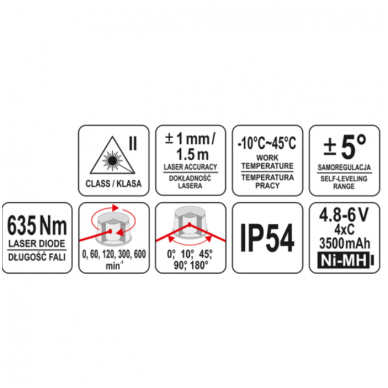

range: 500 m (with detector) laser accuracy 1 mm / 15 m
laser wavelength: 635 Nm
self-leveling within ± 5 °
five scanning speeds 0-60-120-300-6000 rpm
five scanning angles of 0 °, 10 °, 45 °, 90 °, 180 °

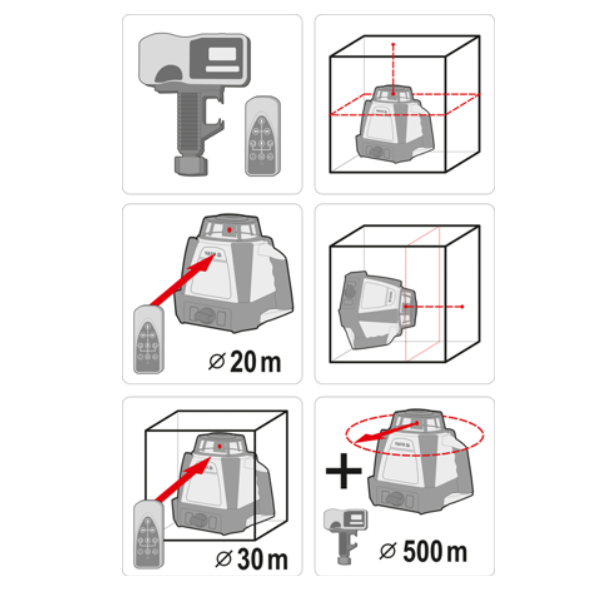

precise control of rotations up to 30 m indoors and up to 20 m in an open area with a signal receiver up to a distance of 400 m
the point displayed at a 90 ° angle above and below the device
360 ° rotatable head and 90 ° projection of the point relative to the plane
the possibility of designating vertical and horizontal lines as well as right angles on open ground and inside rooms
IP54 tightness class provides adequate protection in working conditions
the magnet in the base allows the laser to be mounted on a steel foundation
power supply: 3.5 Ah battery

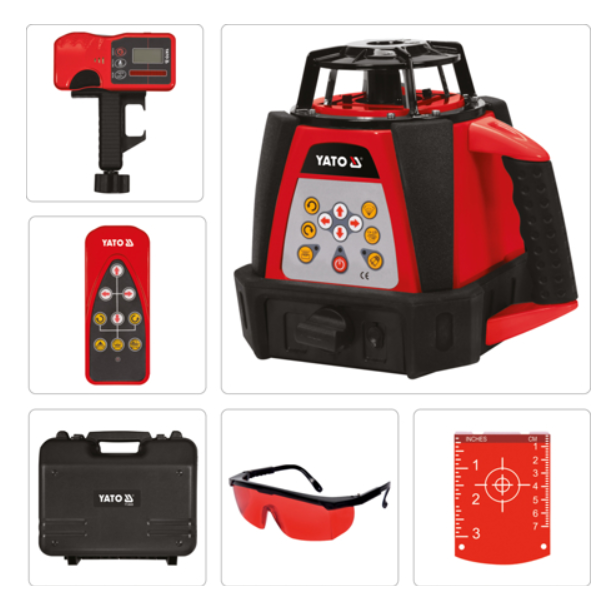

complete with detector, pilot, visibility glasses, target plate and charger

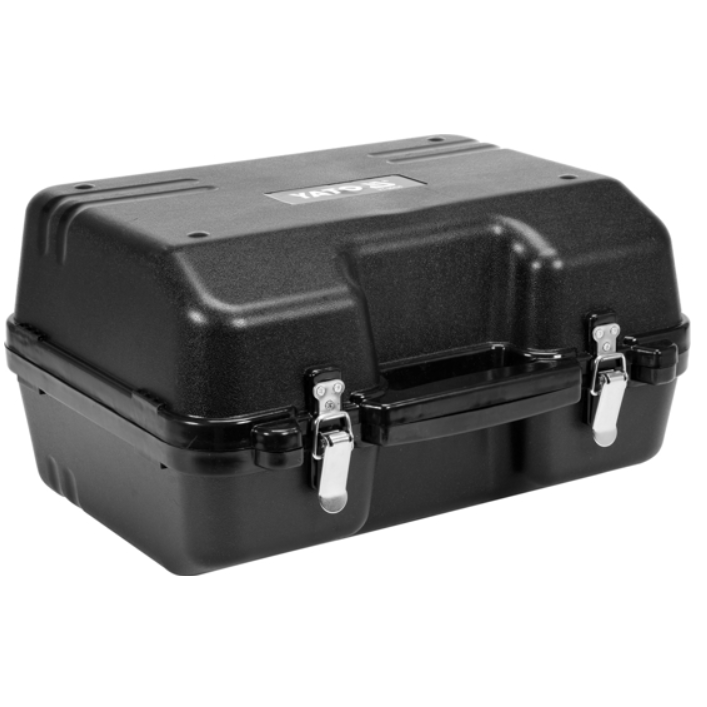

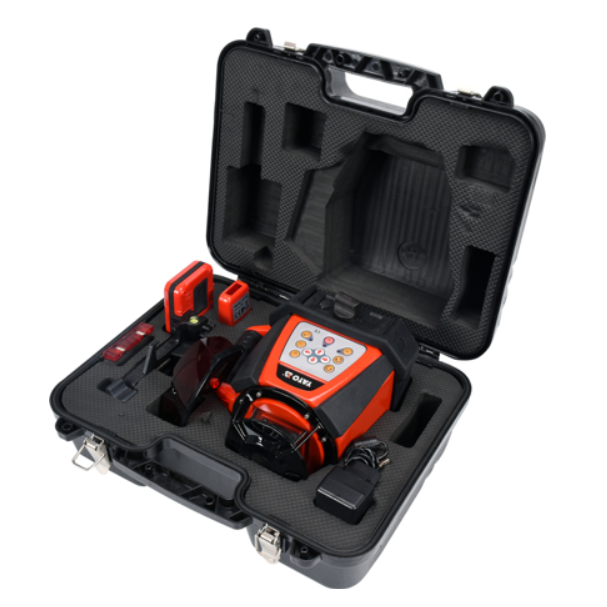

packed in a sturdy suitcase with metal snaps
Purpose / Use
For determining points of lines, surfaces inside and outside in construction and finishing works.
Usage
According to the attached instructions
Contents of the package
Laser, detector, remote control, glasses, sight plate, power supply, instruction.
Technical data
Index number YT-30430
EAN 5906083037504
Brand Yato
Gross weight (kg) 6.1250
Master Carton MC 4
Pal 20
