Product description

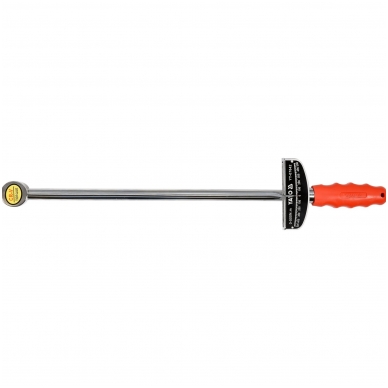

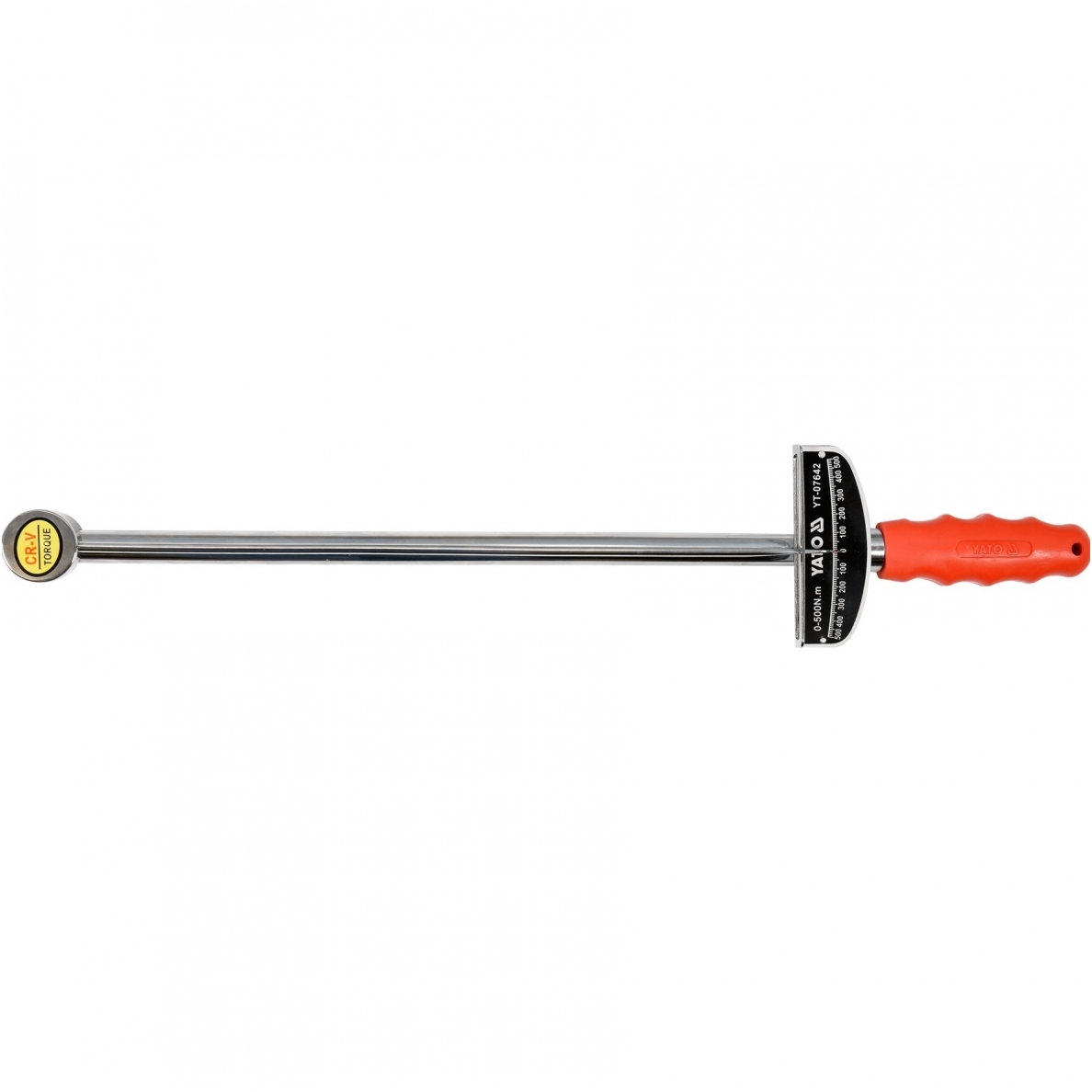

Torque wrench by YATO. It is used to tighten threaded connections with force at a precise moment. The range of the key is 0-500Nm. The tool works on the principle of a pendulum.
The YATO tilting torque wrench is calibrated in Nm. The tool has an ergonomic plastic handle. The whole is made of CrV 6140 material.

Because other units function in use - below is a comparative comparison of moments in different units of length and force:

1 kG * cm = 13,887 OZ * IN (ounce x inch)
1 kG * cm = 0.867 LB * IN (pound x in)
1 kG * m = 9.80665 N * m (Newton x meter)
1 kG * m = 7.233 LB * FT (pound x foot)
1 FT * LB = 12 LB * IN (lb. in.)
1 dm * N = 14.16 OZ * IN (ounce x inch)
Purpose / use
It is mainly used in automotive technology for precise fixing and wherever the manufacturer has specified the required tightening torque. The construction of the key enables the operation of connections with the left-hand thread.
Usage
When the bolt or nut is tightened, when the resistance appears, the indicator mounted on the key's head begins to tilt, indicating to us the strength with which the bolt or nut is tightened at the moment.

Technical data
Index number YT-07642
Brand Yato
Drive size [inch] 3/4 "
The torque value [Nm] 0-500

3/4"; 0-500NM; TPR GRIP; HEAD MATERIAL: CR-V6140; TUBE MATERIAL: 40CR; CHROME PLATED; 65Mn NEEDLE; DIAL WITH ALU; BLACK FINISH MATT; RED SCALE
