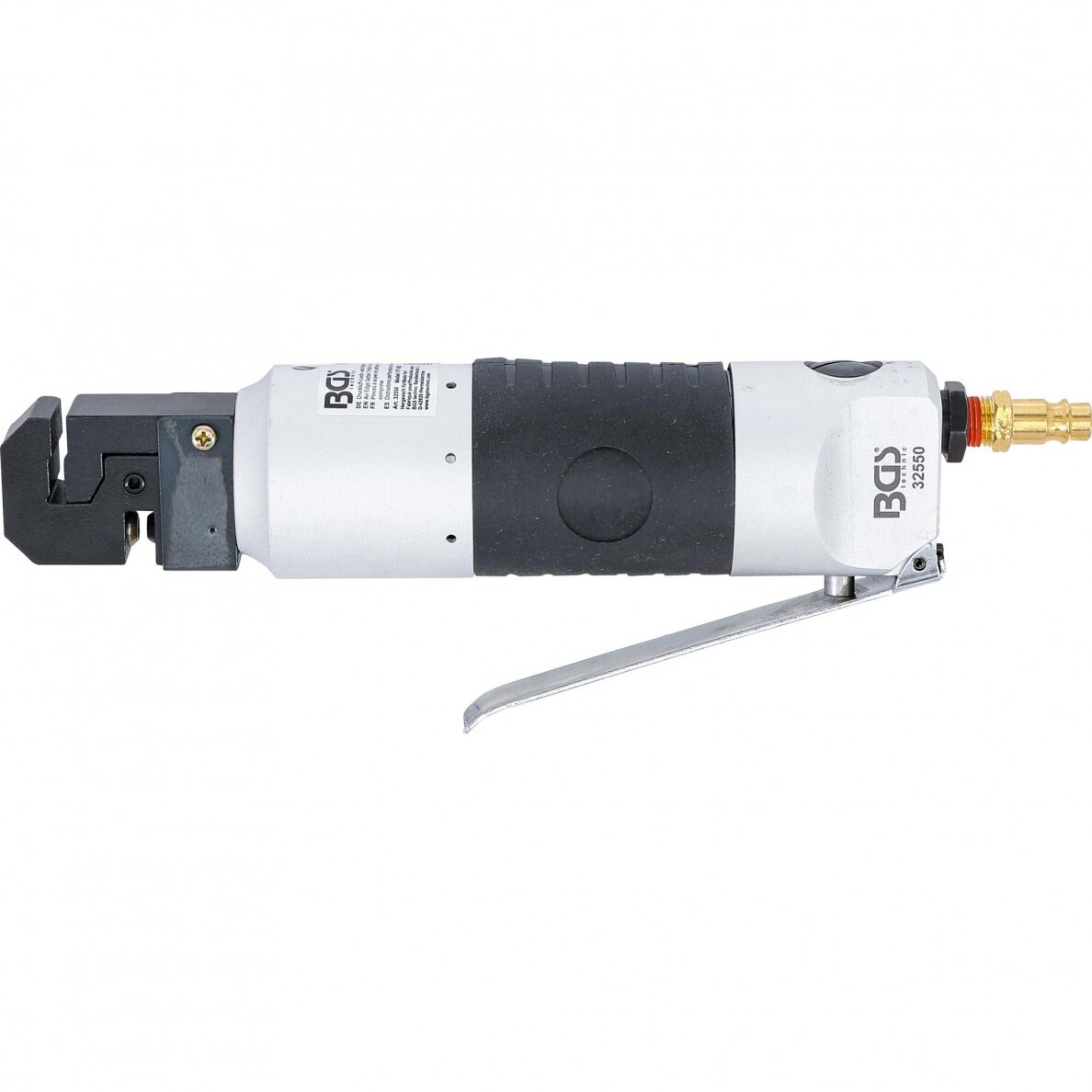

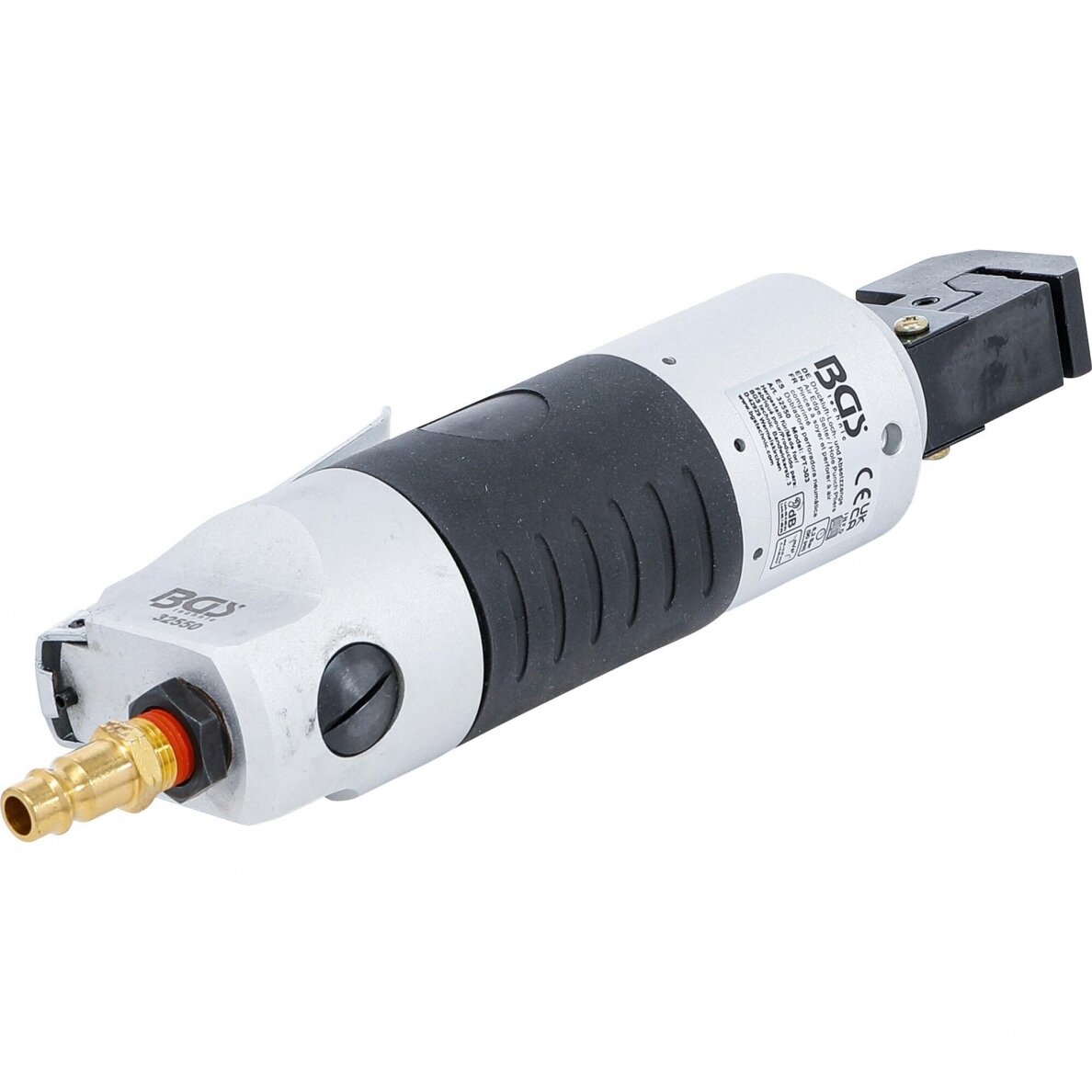

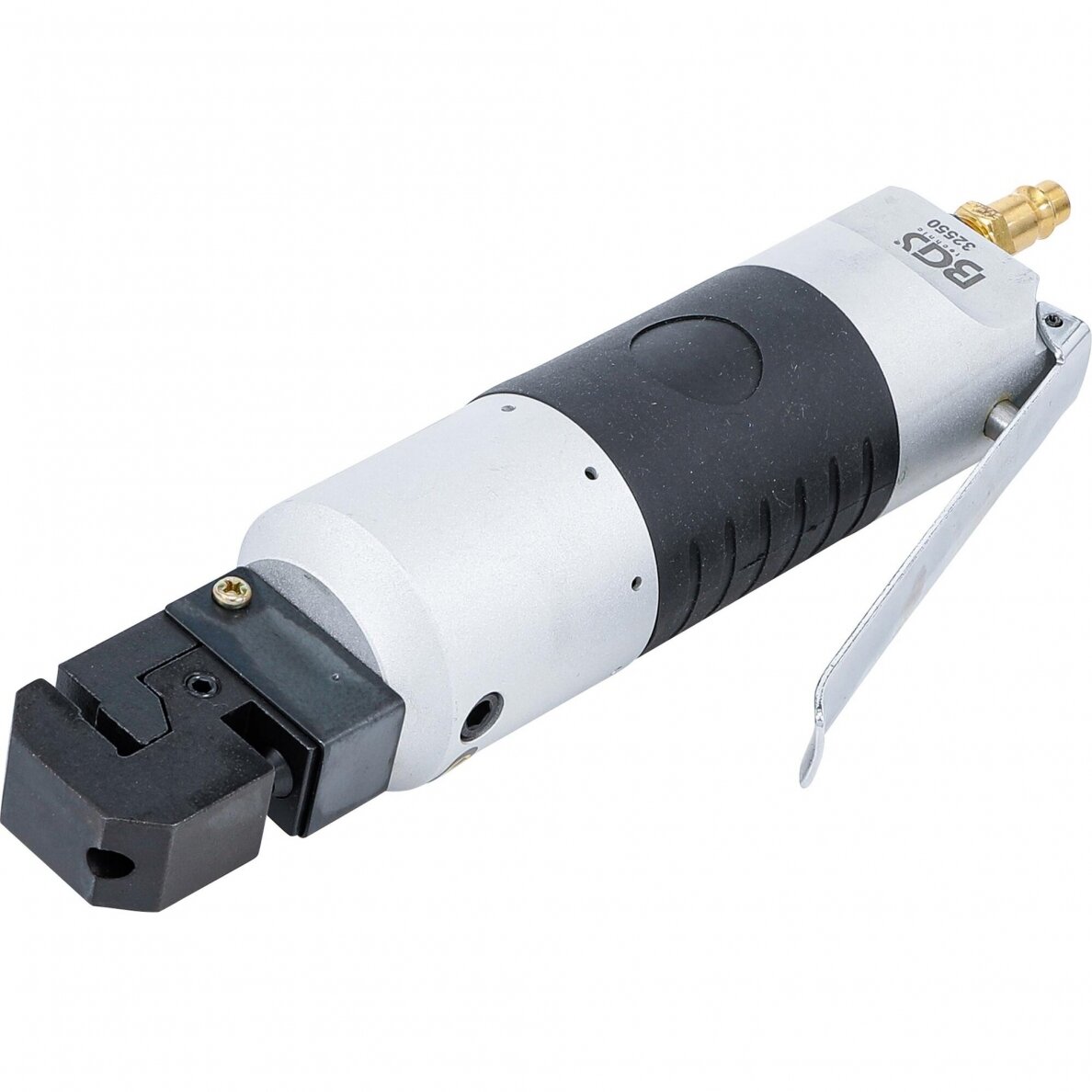

Faster and less power-consuming than hand edge setters

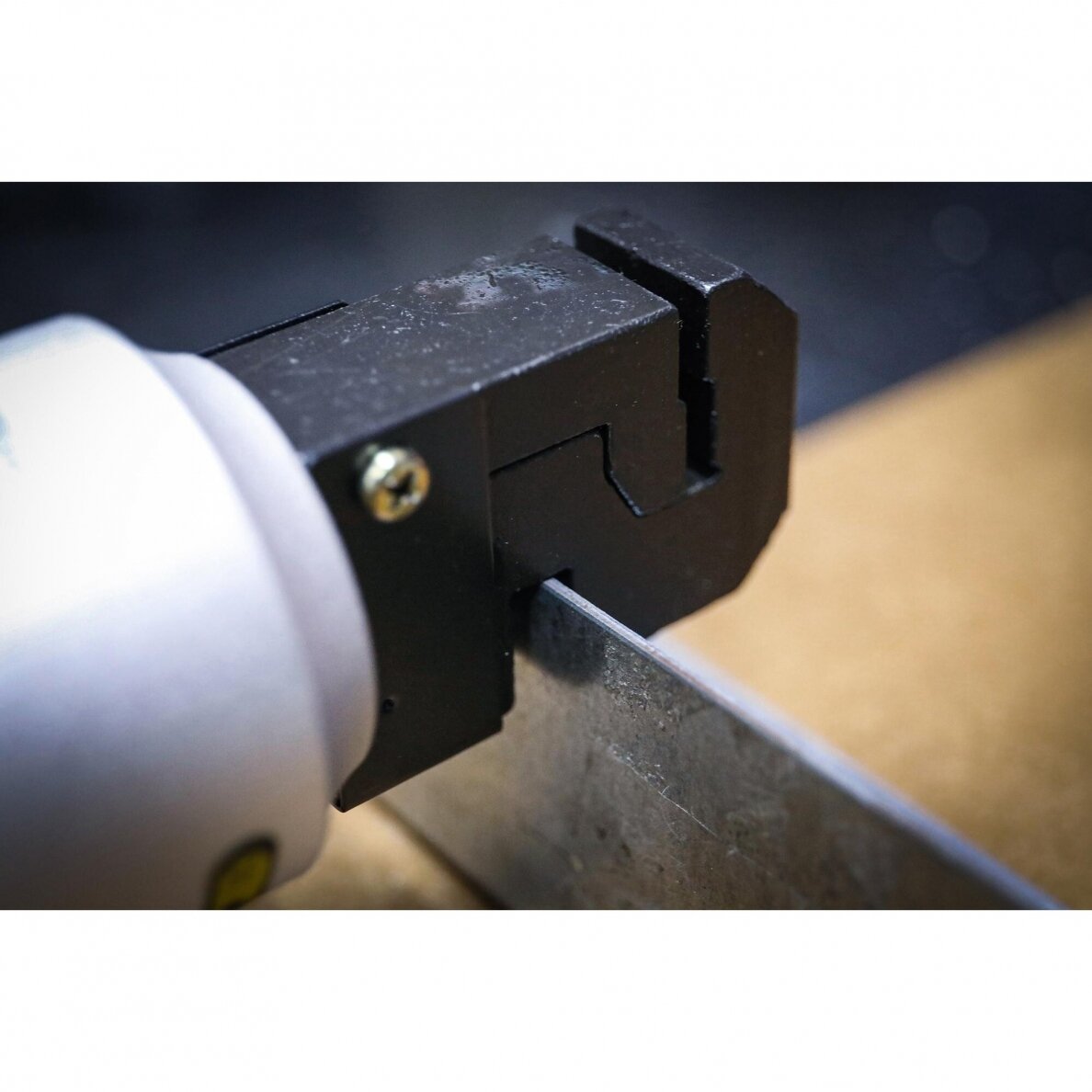

for edge setting off normal car body sheets (not hardened), sheets of steel, copper, brass and aluminum of thickness up to 1.6 mm

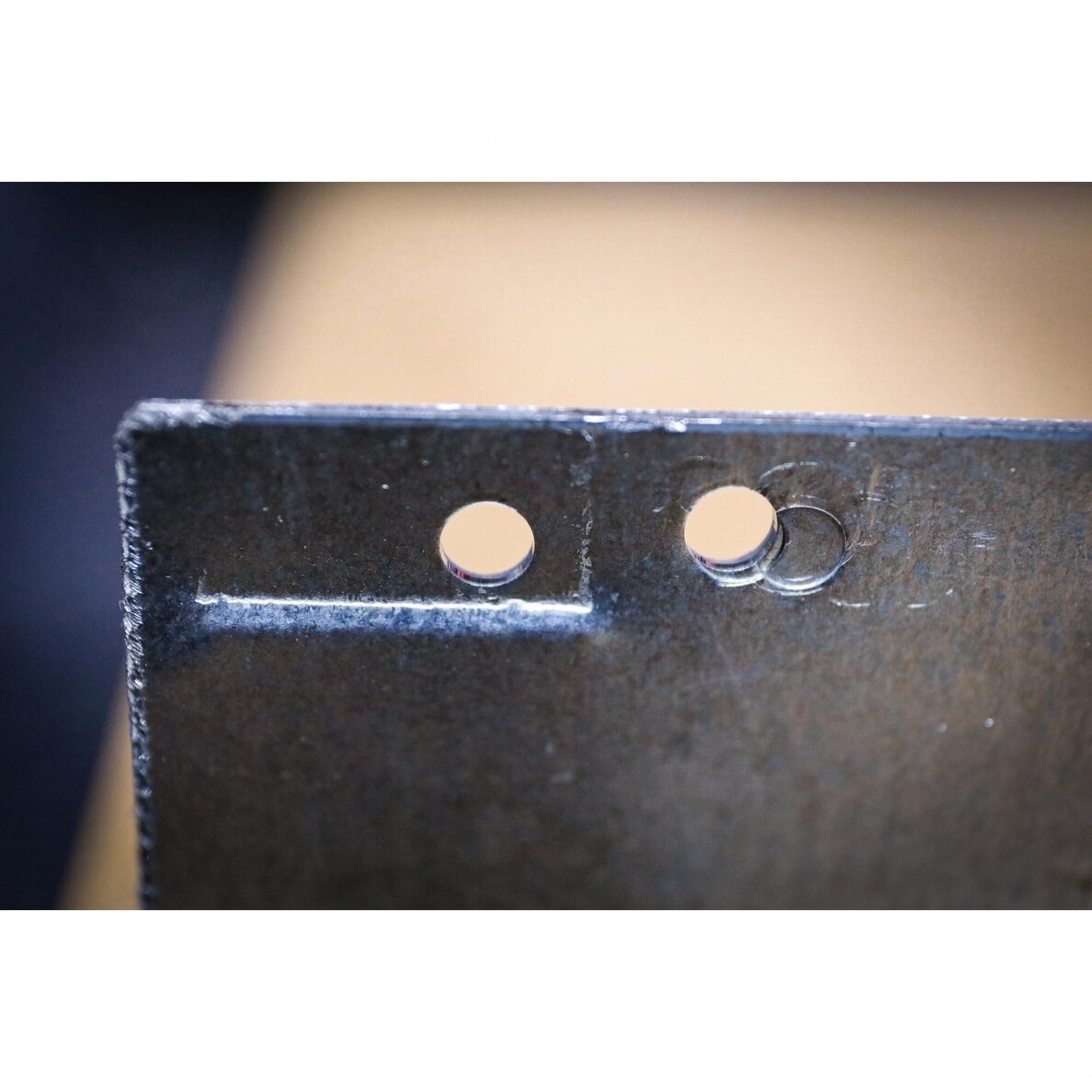

also punches 5 mm holes for spot welding
with pneumatic-hydraulic force amplification
punch diameter: 5 mm
sheet thickness max.: 1.6 mm
Technical data
Length 335 mm
Width 168 mm
Height 108 mm
Gross weight 1954 g
Working pressure 6,2 bar
Compressed air connection 1/4 "
Recommended hose inner diameter 10 mm
Air consumption 100 cm³/release
Sound pressure level max. 69,9 dB(A)
Sound power level max. 80,1 dB(A)
Vibration 0,97 m/s²
Uncertainty K 0,05 m/s²
