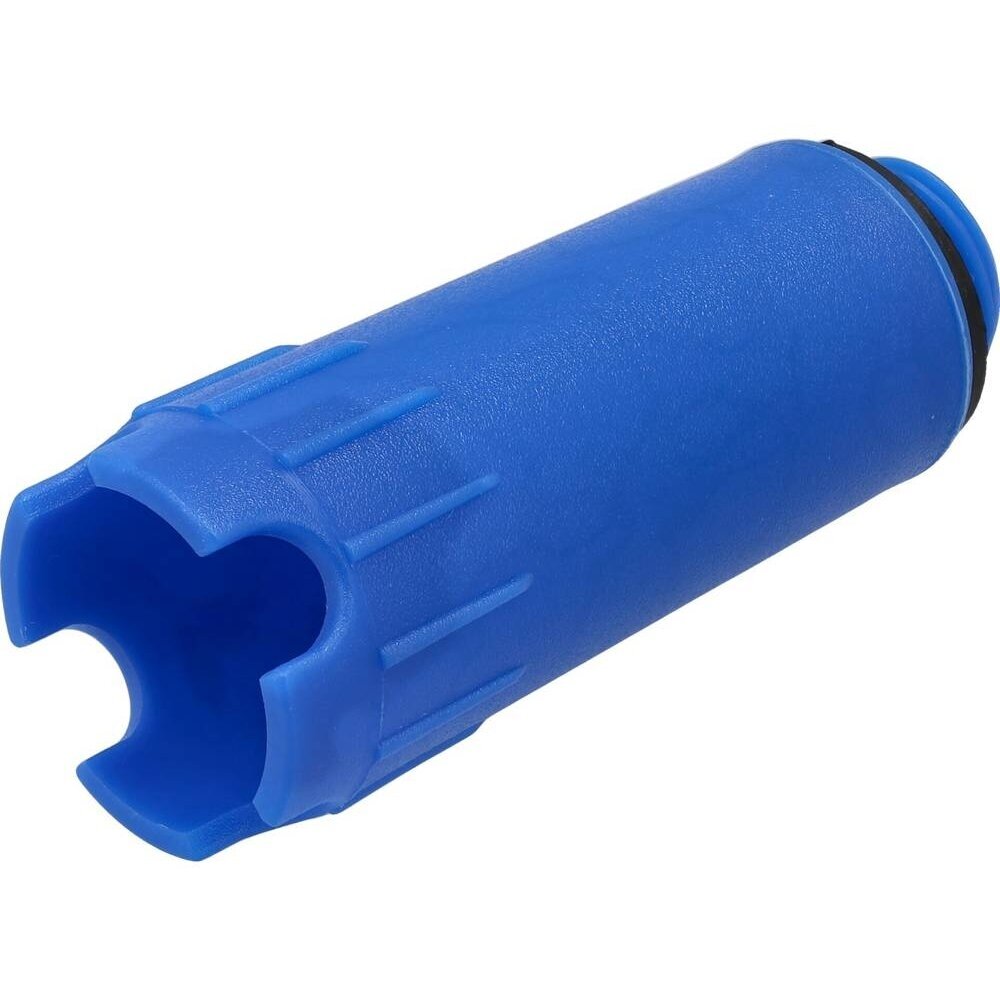

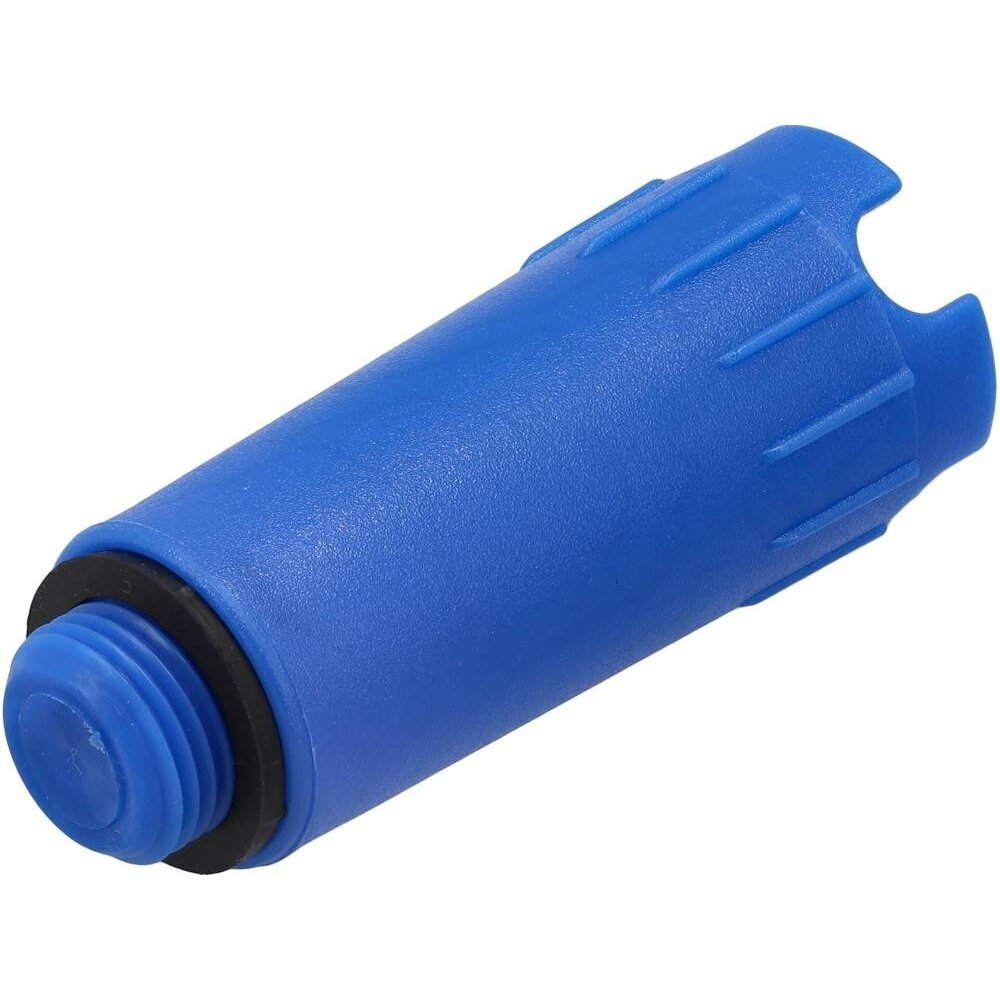

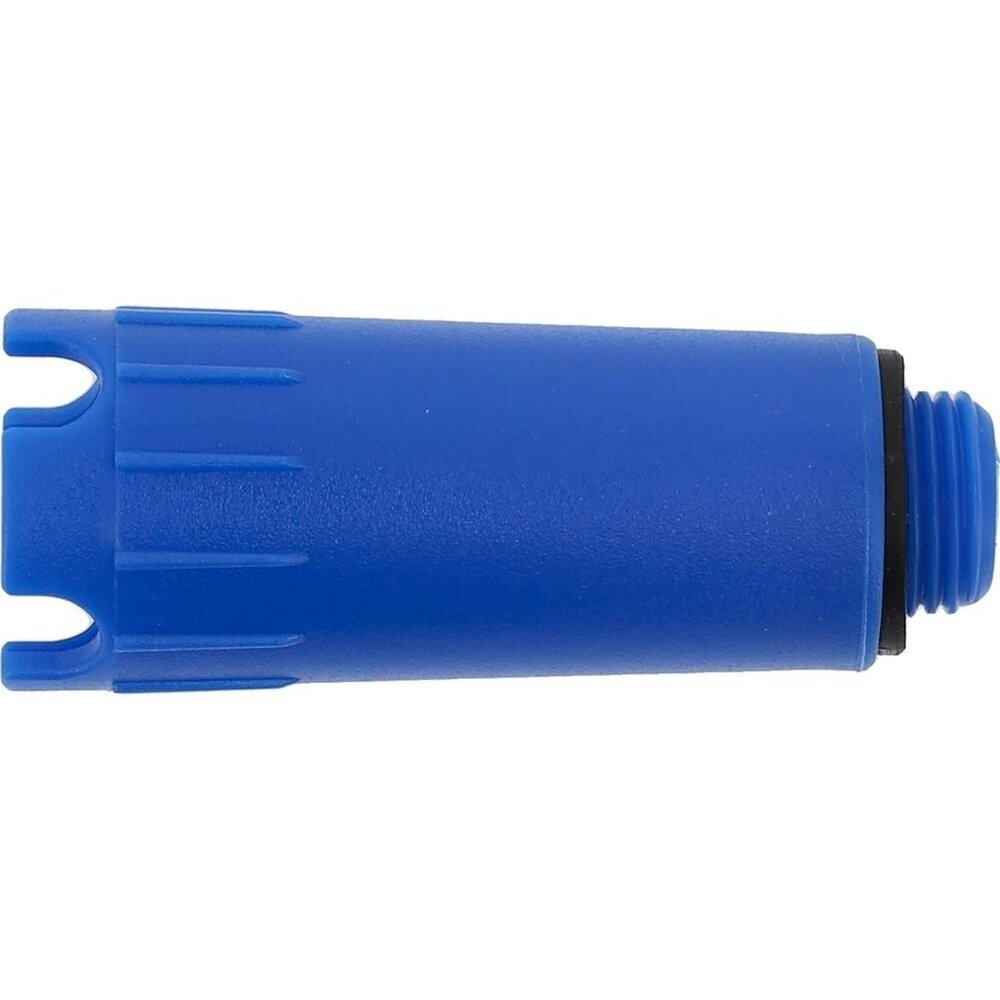

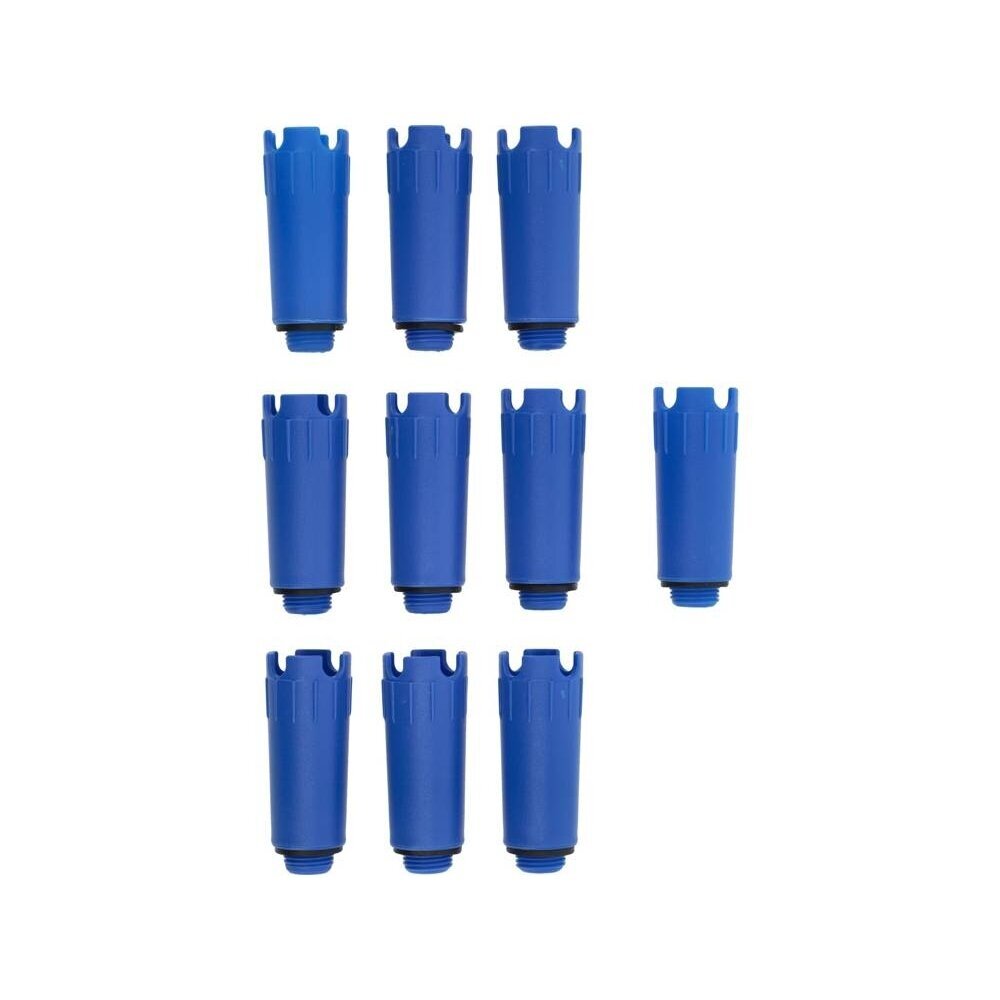

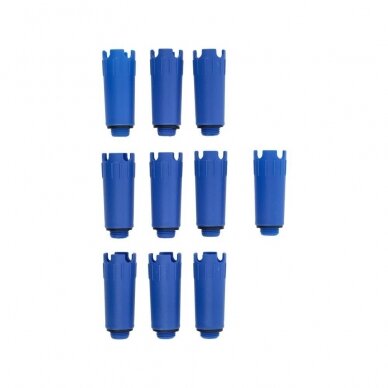

Laikinų kamščių rinkinys mėlyni centriniam šildymui/buitiniam vandeniui 10vnt.

  • Laikinų kamščių rinkinys mėlyni centriniam šildymui/buitiniam vandeniui 10vnt.

    Kodas: 54902
    336
    Šią prekę turime sandėlyje.
    Į krepšelį
    Skaičiuojama...
    i

    Mėgėjiška linija.

    Prekės ženklas
    VOREL
  • Material
    PP
    Application
    temporary plugging of threaded holes in central heating (C.O.) and domestic water (W.U.) installations,
    Operating temperature range
    -45 ~ +120 ˚C
    Length
    88mm
    Thread size
    G1/2
    Color
    blue (for cold water)
    Mass
    20 ± 5% g
    working pressure
    12 bar
    diameter
    35 ± 5% mm
    Thread type
    cylindrical, inch
    Number of pieces in the set
    10
    Application continued
    used, for example, when carrying out a leak test, necessary before commissioning the above installations
    min diameter
    30±5% mm

    The plug is used for temporary plugging of threaded holes in central heating (C.O.) and domestic water (W.U.) installations. Used, for example, when carrying out a leak test, necessary before starting the installation. The appropriate length and corrugations limiting the slip of the hand enable convenient plugging of pipes and fittings as well as easy assembly and disassembly without the use of any tools. Equipped with a rubber gasket.

    thread diameter: 1/2"
    thread type: cylindrical, inch
    material: PP (polypropylene)
    length: 88mm
    maximum diameter: 35 mm +/-5%
    minimum diameter: 30mm +/-5%
    color: blue (for cold water)
    maximum working pressure: 12 bar
    temperature range from -45 to 120oC
    quantity in a unit package: 10 pcs
