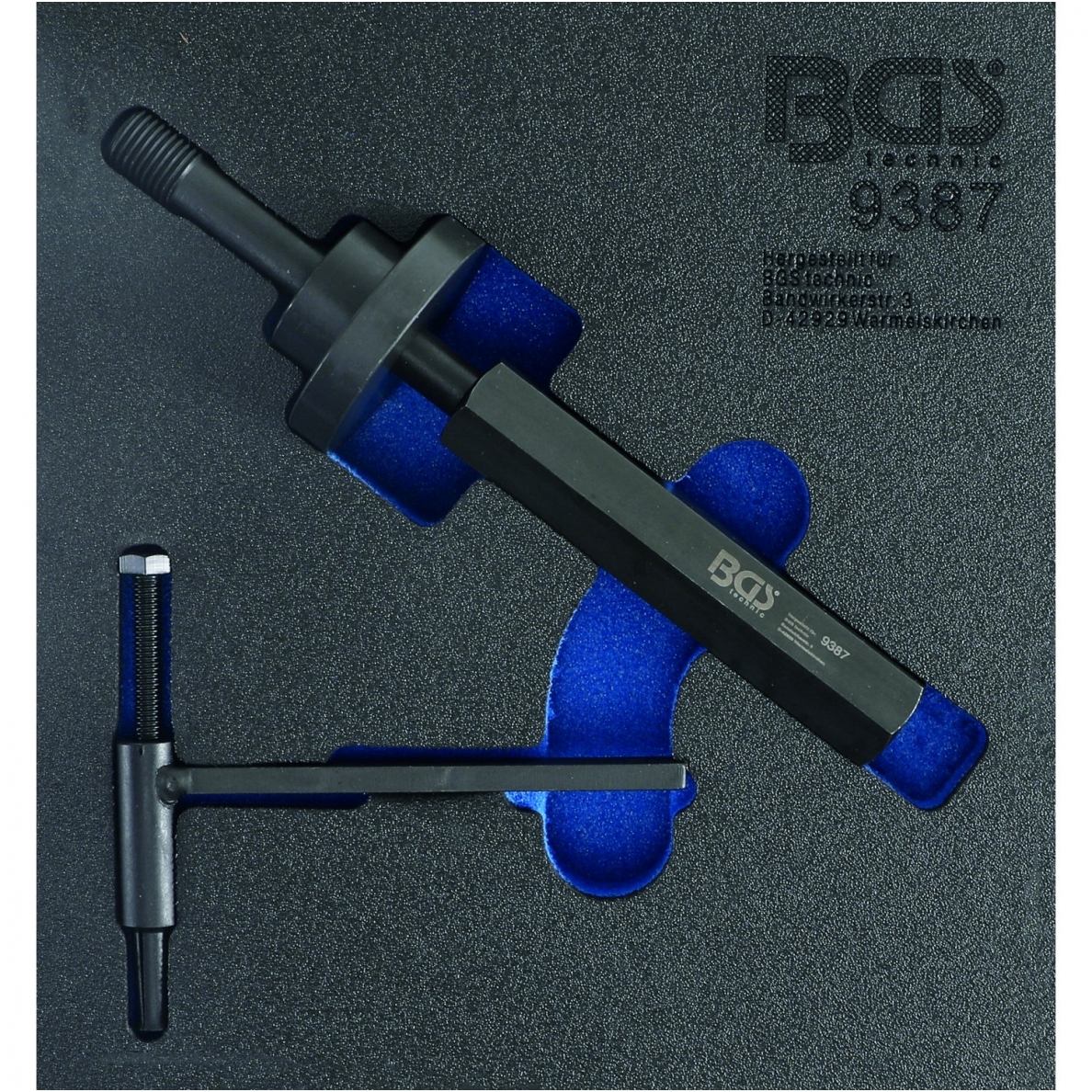

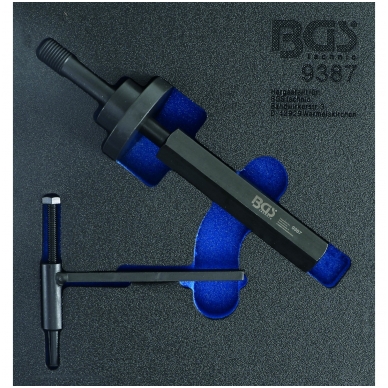

Chain Housing Cover Alignment & Pump Sprocket Removal Tool Set for Ford 1,8 TDdi / TDCi
- for alignment of chain housing cover and
for removing of high pressure pump sprocket
during works on e.g. high pressure pump chain
- tools are complementary for engine timing tool set (BGS 8156)
- includes following 2 tools:
- alignment tool for timing chain housing cover,
to be used as OEM 303-652 (21-230)
- removal tool, for high pressure pump sprocket,
to be used as OEM 303-095 (23-067)
- suitable for following models:
- Focus 1.8 TDCi (2004-2011)
engine codes: KKDA, KKDB
- C-Max 1.8 TDCi (2003-2007)
engine codes: KKDA , BHPA, HCPA
- Tourneo Connect 1.8 TDCi (2002-2013)
engine codes:
HCPA, HCPB (2002-2006)
RWPA, R2PA, P7PA, P9PA, R3PA (2006-2013)
P9PB, RWPC (2009-2013)
- Tourneo Connect 1.8 TDdi (2002-2006)
engine code: BHPA
- Mondeo 1.8 TDCi (2007-2010)
engine codes: FFBA, QYBA, KHBA
- Mondeo 1.8 TDCi ECOnetic (2008-2010)
engine code: KHBA
- Transit Connect 1.8 TDCi (2002-2013)
engine codes: HCPA, HCPB (2002-2006)
RWPA, P7PA, R2PA, P9PA, R3PA (2006-2013)
P9PB, RWPC (2009-2013)
- Transit Connect 1.8 TDdi (2002-2006)
engine code: BHPA

Chain housing cover alignment tool, to be used as OEM 303-652 (21-230)
High pressure pump sprocket disassembly tool, to be used as OEM 303-095 (23-067)
