Product description

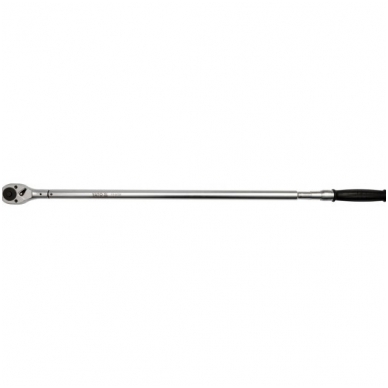

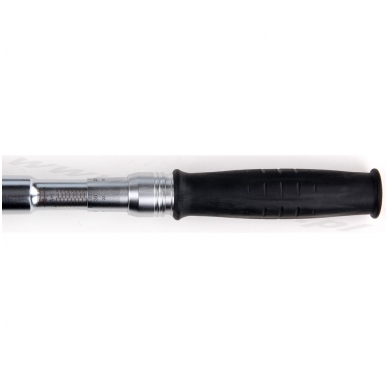

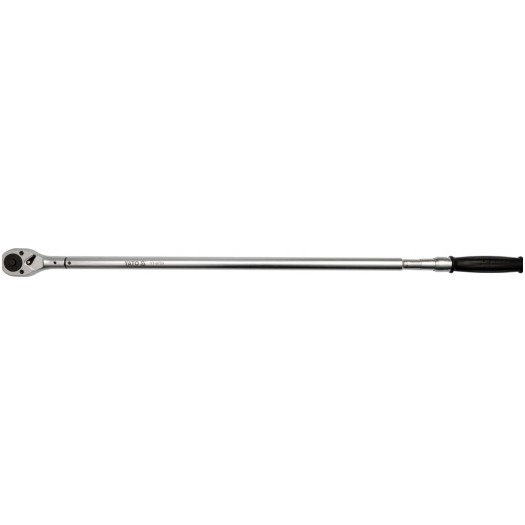

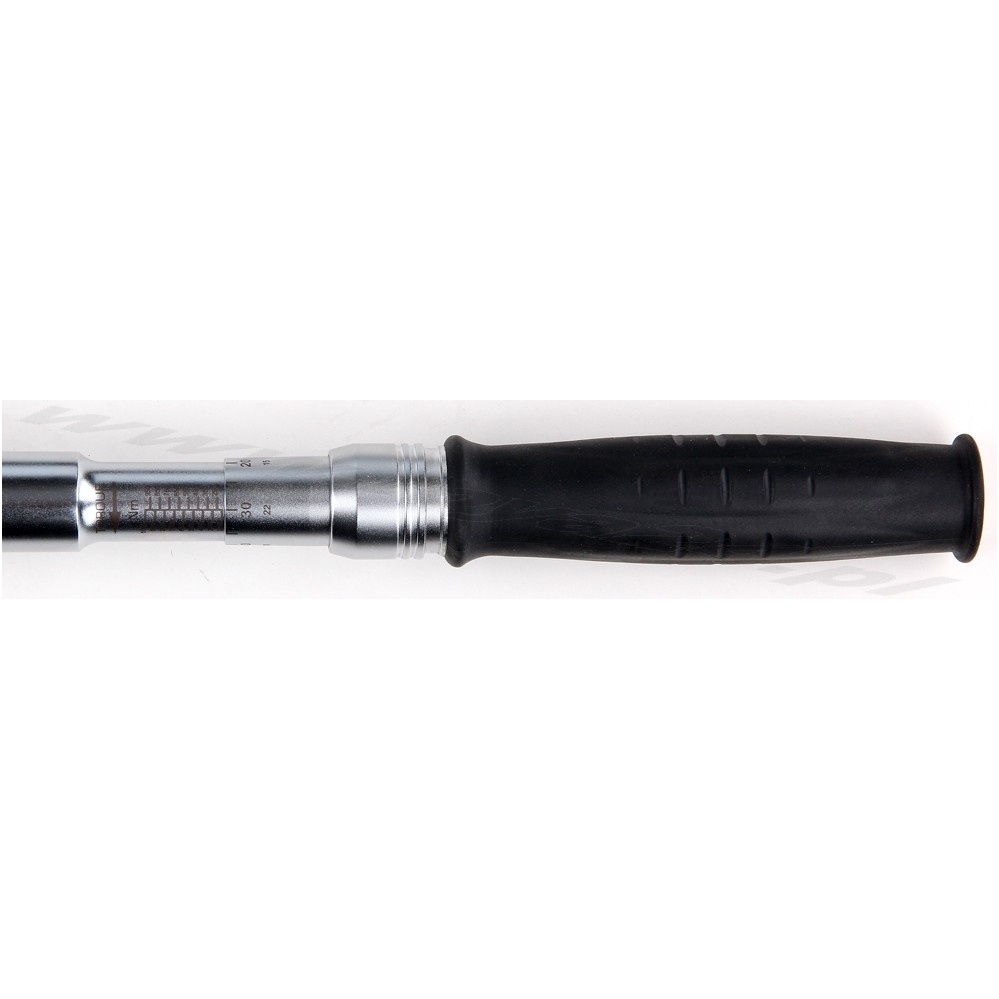

The wrench is made of chrome vanadium steel, which ensures its durability and durability. It has a mechanical tension of the dynamometer pawl which, after reaching the desired tightening force, jumps by one clove, producing a characteristic sound. The scale of moments is placed in the handle of the key, its adjustment is done by turning it. After setting the desired torque, lock the key with the handle at the end of the handle.

The key has a GS certificate.

Comparison of moments in different length and strength units:
1 kG * cm = 13,887 OZ * IN (ounce x inch)
1 kG * cm = 0.867 LB * IN (lb. in.)
1 kG * m = 9.80665 N * m (Newton x meter)
1 kG * m = 7.233 LB * FT (pound x foot)
1 FT * LB = 12 LB * IN (lb. in.)
1 dm * N = 14.16 OZ * IN (ounce x inch)
Purpose / Use
It is mainly used in automotive technology for precise fixing and wherever the manufacturer has specified the required tightening torque.
Usage

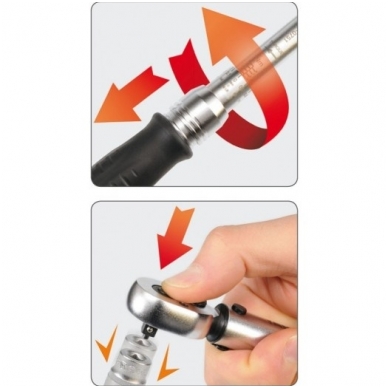

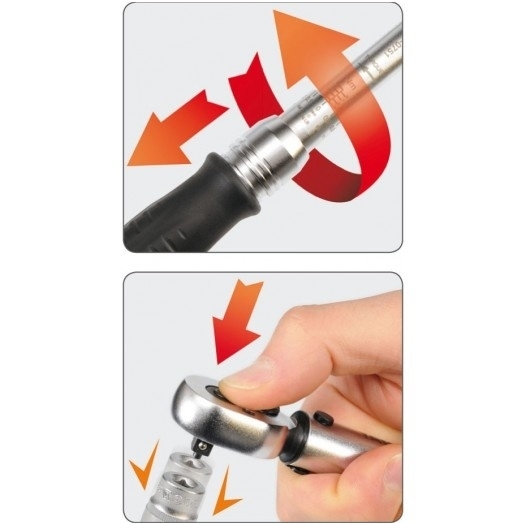

- Select the appropriate Nm or in-lbs scale. Unlock the micrometer knob.
- Holding the unlocked micrometer knob, rotate the wrench handle so that "0" on the scale of the knob coincides with the vertical line on the wrench arm.
- Turn the key handle clockwise until the desired torque is set. The desired torque is set when the scale on the micrometer knob coincides with the vertical line on the key arm.
- Then lock the micrometer knob, making sure that the lock "clicks" and it is impossible to turn the handle, then set the right direction of rotation for the ratchet, after that the key is ready for use.
- A suitable attachment should be put on the key driver. During tightening, reaching the set torque is signaled by clicking on the key. If you hear or feel a click, stop tightening.
Contents of the package
- torque wrench
- Factory Calibration Certificate (Individual for each key, marked with the key serial number)
- user manual
- Warranty Card

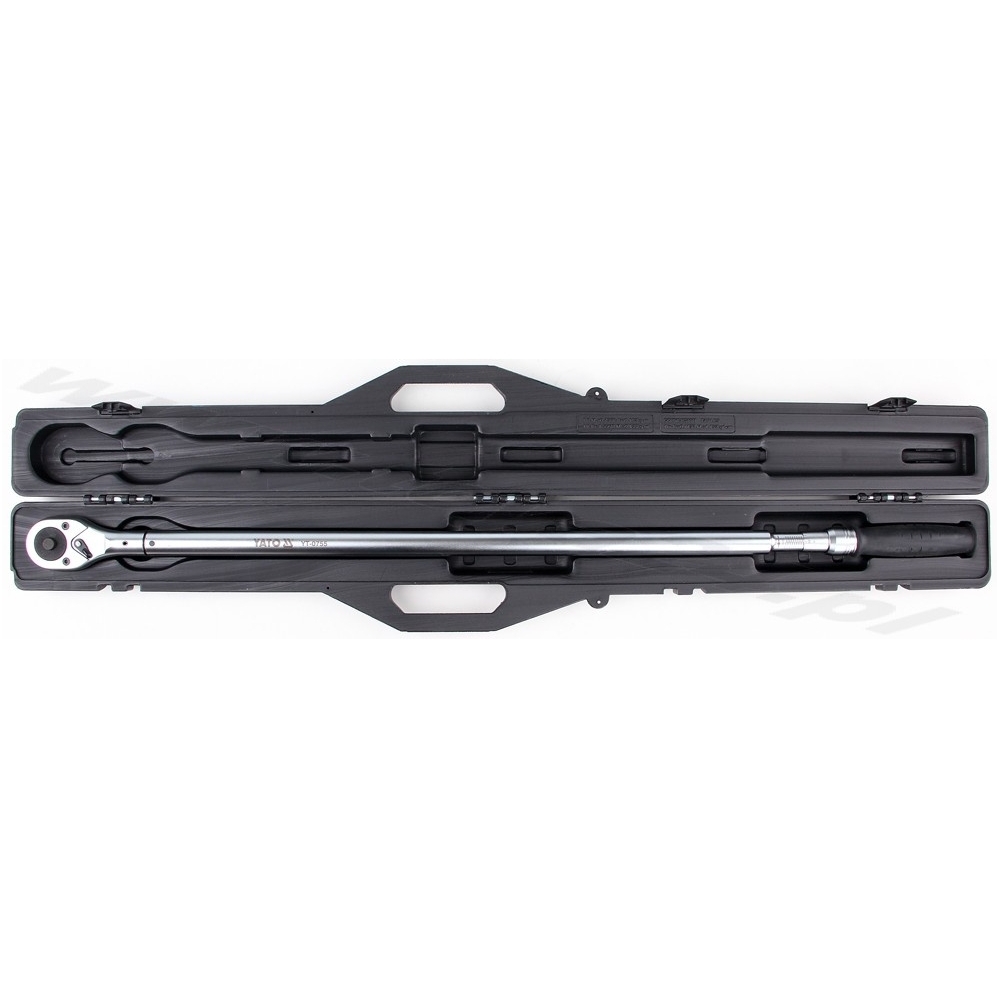

- suitcase
Technical data
Index number YT-0755
EAN 5906083907555
Brand Yato
Gross weight (kg) 85,000
Master Carton MC 2
Pal 40
Length [mm] 1220-1245
Packing a suitcase
Intended for precision tightening of threaded connections
Drive size [inch] 3/4
The torque value [Nm] 200-1000
The tolerance of + -4%
Calibration certificate YES
