Numeris YT-2357
EAN 5906083923579
Purkštuko dydis [mm] 0,8
Talpa [l] 0,1

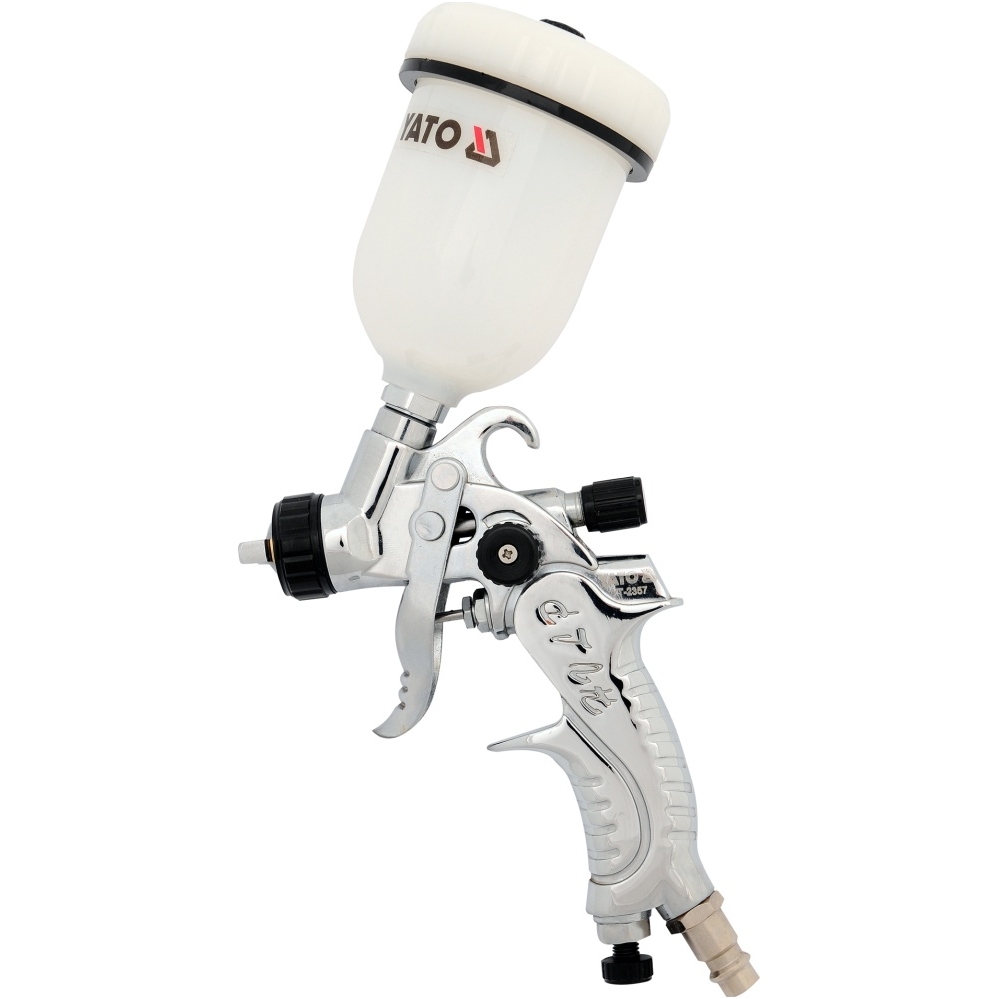

Product description
Spray gun is used for painting work. Compressed air is a prerequisite for proper operation of the gun. The paint from the gun tank and the compressed air supplied to the gun form a mixture of lacquer and air particles at the nozzle outlet of the gun.

INSTRUCTIONS FOR USE

Getting started
Use a flat spanner to tighten the nozzle. Check the tightness and reliability of the compressed air supply connections. Blow air supply hose before connecting it to the installation. Before using the gun make sure that it is properly cleaned and maintained. Make sure that the container with the coating material is properly sealed.

Adjustable spray jet width
Changing the width and shape of the spray jet can be achieved by rotating the air nozzle. The shape of the flux can be smoothly adjusted from flat to round as needed. The amount of coating material supplied to the air stream is determined by the knob for regulating the amount of coating material. On the other hand, the spray adjustment knob adjusts the intensity of the mixture of the coating material to the air. It is recommended that the mix stream be adjusted so as to obtain the smallest particles of the coating material, this will provide a better spreading of the coating material on the surface.

Work with a gun
Use a gun to maintain the distance between the gun outlet and the covered surface in the range of 10 to 15 cm. Try to keep the gun outlet perpendicular to the surface to be coated. Avoid curved movements, resulting in uneven distribution of coating material. It is recommended to apply several thin layers rather than one thick.

Adjustable air flow
Depending on the type of coating material, the amount of compressed air must be selected by adjusting the air pressure control knob.

Replacement of the nozzle
Make sure you replace the entire nozzle assembly. The set includes a coating material nozzle, needle and air nozzle.

Needle seal
Check the sealing of the needle seal during operation. In case of significant wear, replace the gasket during periodical inspection of the gun using a wrench to remove the seal assembly.

Cleaning and maintenance
After finishing work, disconnect the gun from the compressed air system and empty the tool tank from the remaining coating material. Thoroughly clean the container from the residue of the coating material. Thoroughly clean the entire transmission path of the coating material. Inaccurate wiping will reduce the flow characteristics of the coating material. Clean the air nozzle with a brush dipped in solvent. Never immerse the entire gun in the solvent. Never clean clogged holes using hard objects because even slight internal damage can adversely affect the performance of the spray jet. After washing the gun, apply a small amount of lubricant to the moving parts of the seals. Tighten the coating nozzle to such an extent to avoid leaks while ensuring a smooth movement of the needle.

Technical data
Index number YT-2357
EAN 5906083923579
Brand Yato
PCS unit
Gross Weight (kg) 0.5750
Master Carton MC 20
Pal 420
Pressure [bar] 3
Packing box color box
Nozzle size [mm] 0.8
Size of coupler [inch] 1/4 "
Performance [l / min] 220
Capacity [L] 0,1
