Prekės numeris 74480
EAN kodas 5906083744808
vnt vienetas

Product description

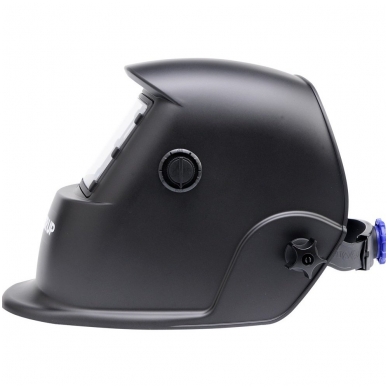

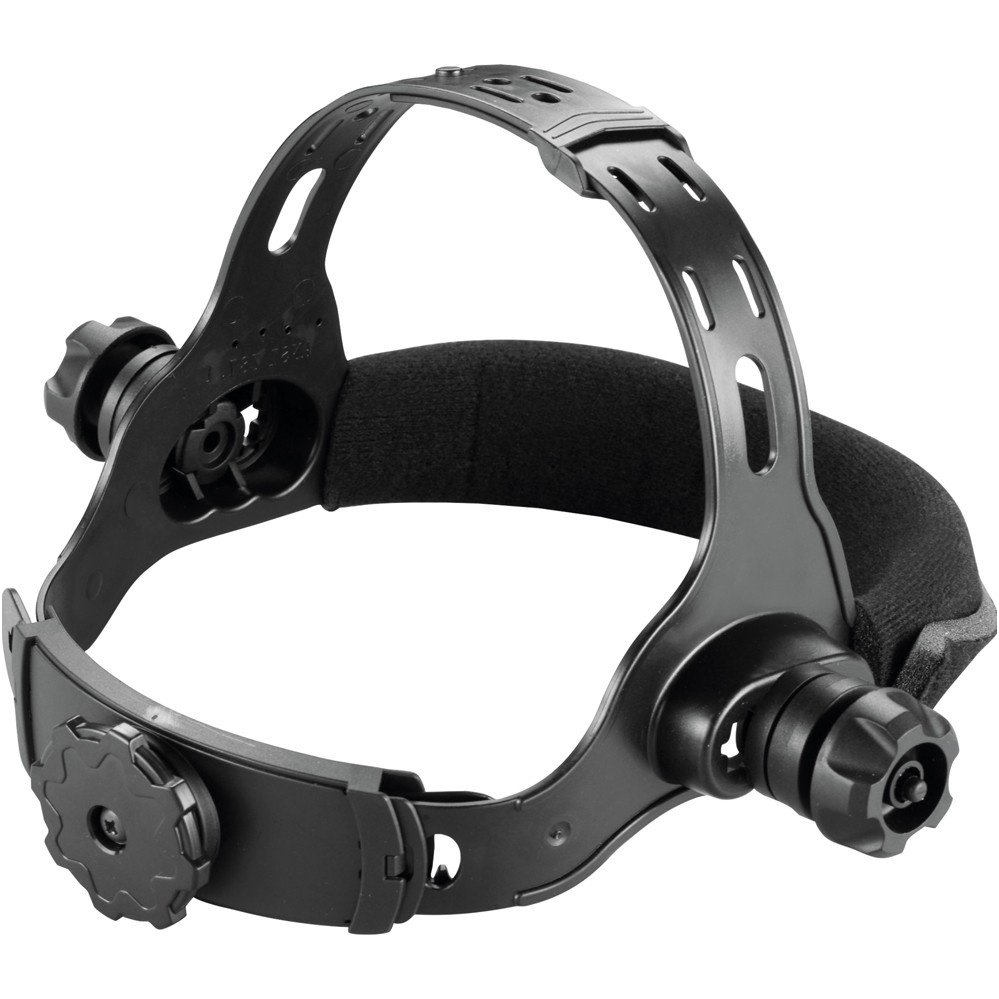

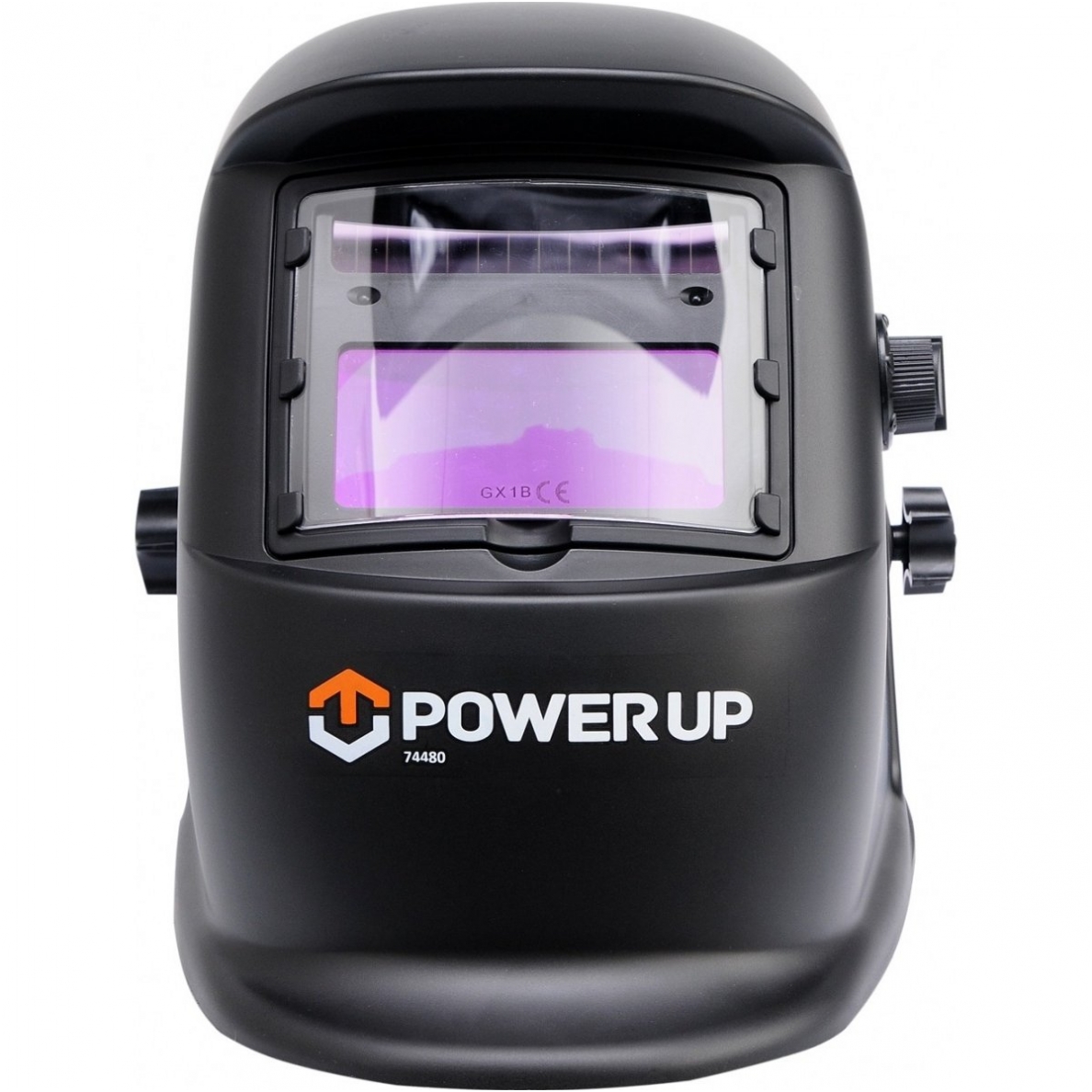

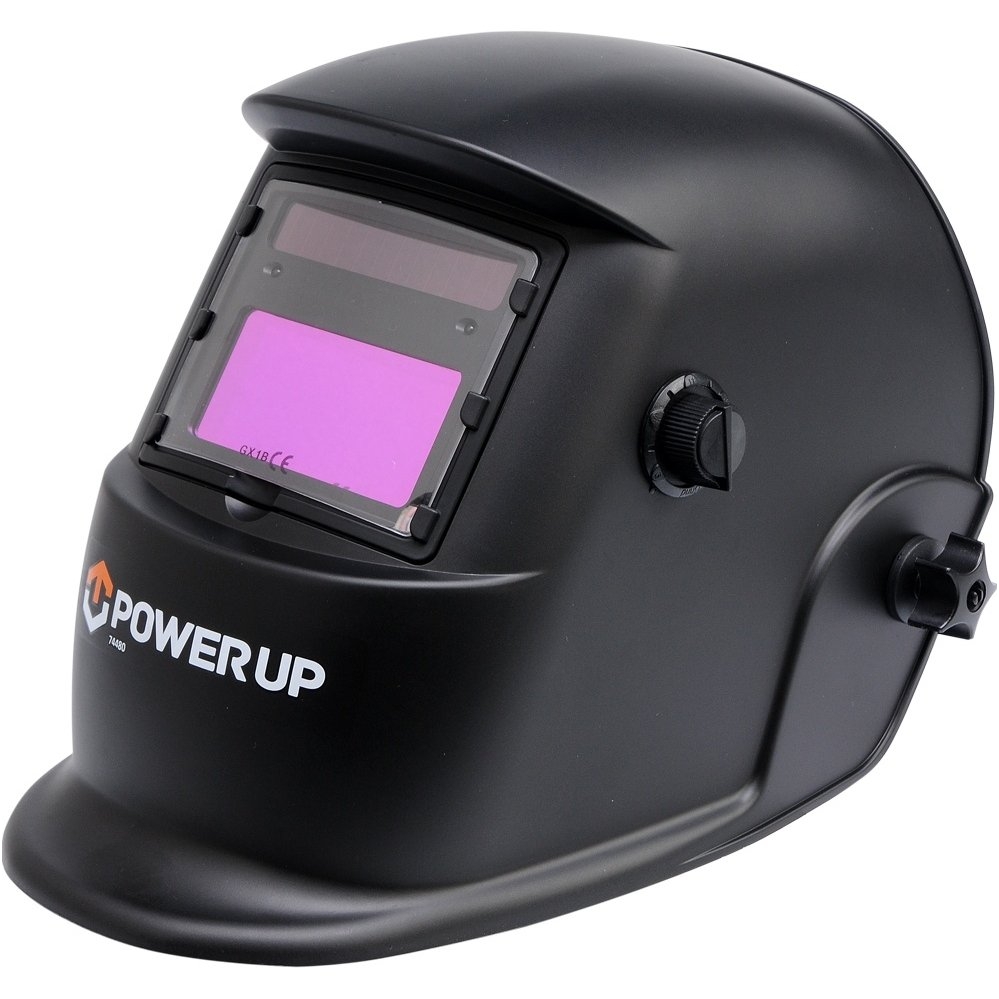

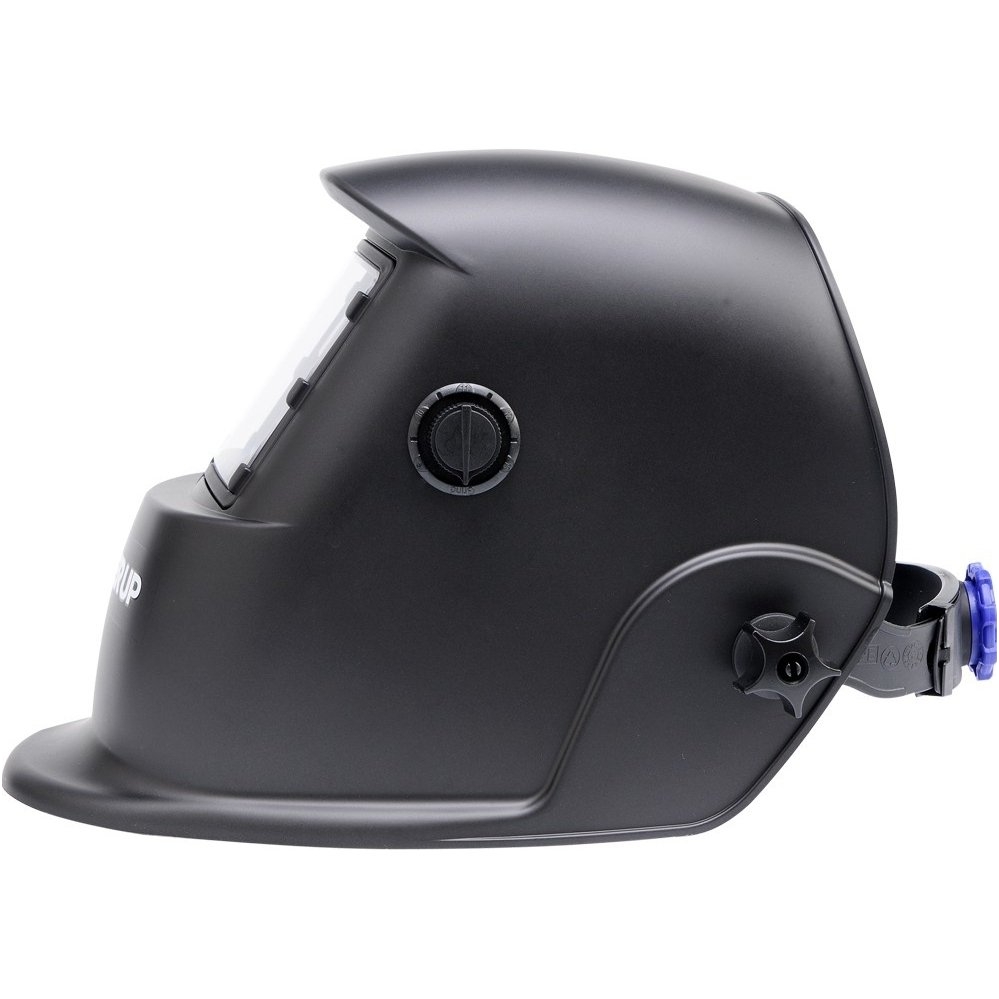

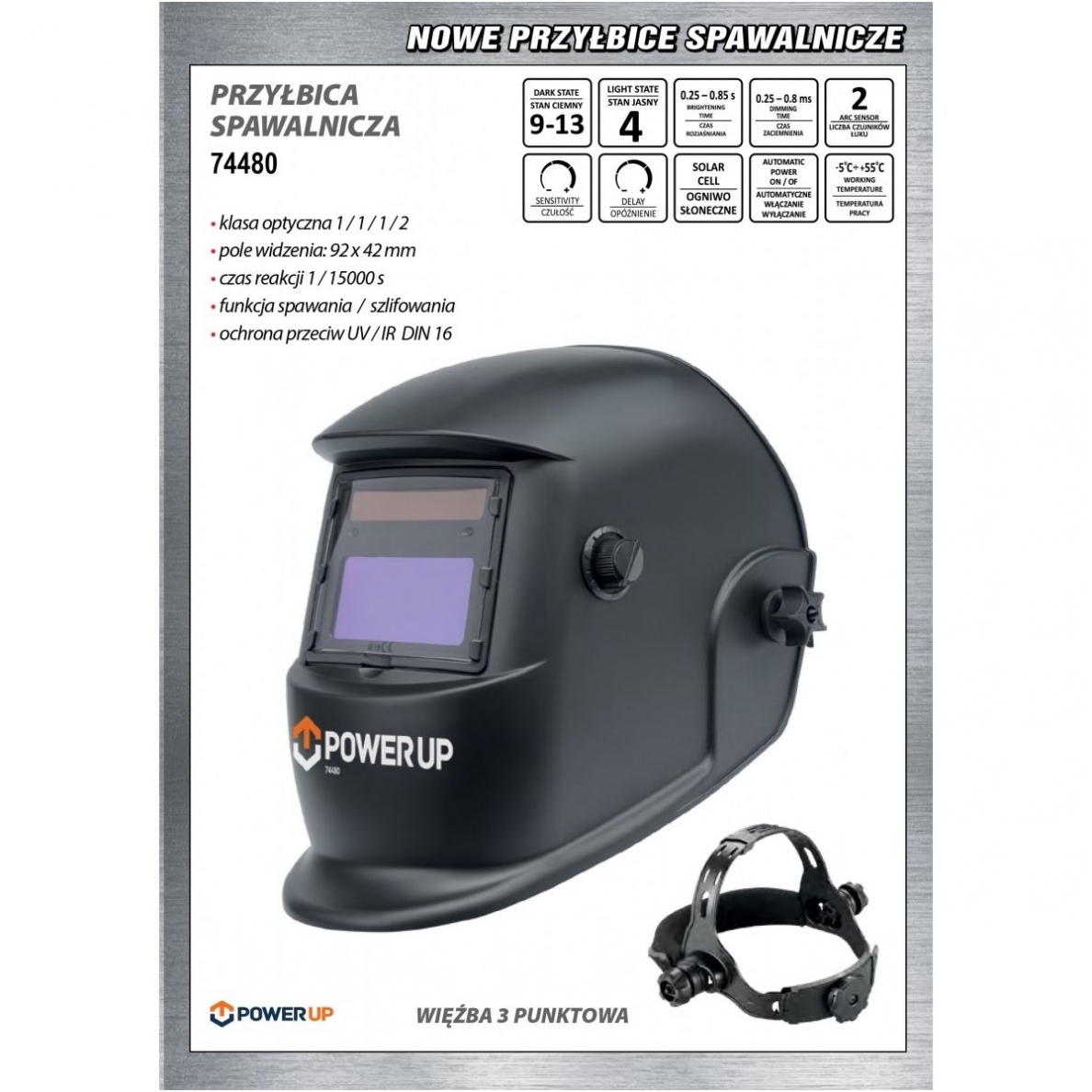

Welding helmet with self-lubricating filter. Optical class 1/1/1/2. The high quality filter equipped with 2 arc sensors provides a field of view of 92 * 42 mm, a dark state of DIN 9-13, a bright state of DIN4, a reaction time of 1/15000 s., A brightening time of 0.25-0.85 s. 0.25-08 s. In addition, the filter provides UV / IR protection at DIN16 level. The helmet has a smooth adjustment of sensitivity and delay. Powered by a solar cell and has an automatic on / off function. The helmet also has a protective function during grinding. It can be used in the temperature range from -5 ° C to +55 ° C. In addition, it is equipped with a very comfortable 3-point height-adjustable and occipital positioner.

• optical class 1/1/1/2
• field of view: 92 x 42 mm
• response time 1 / 15,000 s
• Welding / grinding function
• UV / IR protection DIN 16
Destination / Application
Welding and grinding
Technical data
Index number 74480
EAN 5906083744808
Brand Power Up
PCS unit
Gross Weight (kg) 1.0000
Solar cell power supply
Filter dimensions [mm] 110x90
darkening filter
Number of sensors [pcs] 2
Field of view [mm] 92x42
Light condition [DIN] 4
Dark condition [DIN] 9-13 '
Response time [ms] 1/15000 '
Welding / grinding functions
MMA / MIG / MAG / TIG welding method
„Google“ vertėjas, skirtas įmonėms:Vertėjo įrankių rinkinysSvetainės vertėjasPasaulinė rinkos paieška

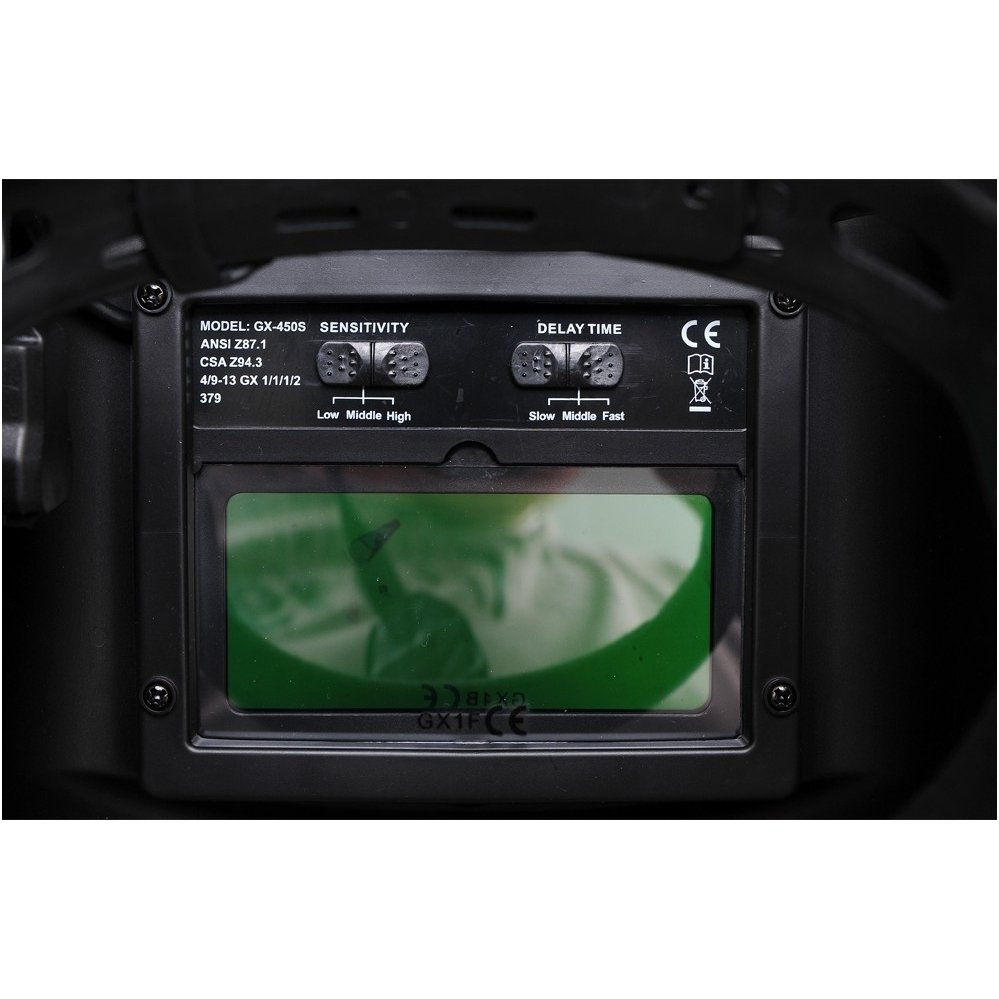

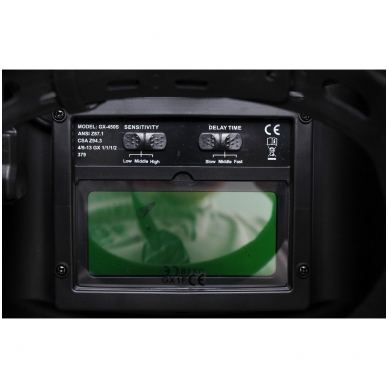

FACE SHIELD: WEGA; OPTICAL CLASS:1 / 1 / 1/ 2; VIEWING AREA: 92×42MM; CARTRIDGE SIZE: 110×90×9MM; ARC SENSOR: 2; LIGHT STATE: DIN 4; DARK STATE: VARIABLE SHADE, 9 ~13; SHADE CONTROL: EXTERNAL, VARIABLE; POWER ON/OFF: FULLY AUTOMATIC; SENSITIVITY CONTROL: LOW-MID-HIGH, BY SWITCH BUTTON; UV/IR PROTECTION: DIN 16 POWER SUPPLY: SOLAR CELLS. RE-CHARGEABLE BATTERY; NO BATTERY CHANGE REQUIRED; SWITCHING TIME: 1/15000S, FROM LIGHT TO DARK; DARK TO LIGHT: 0.25~0.30S AT FAST POSITION, 0.4~0.6S AT MIDDLE POSITION, 0.65~0.85S AT SLOW POSITION; LOW AMPERAGE TIG: ≥20AMPS(DC), ≥20AMPS AC); GRINDING FUNCTION: YES; LOW VOLUME ALARM: NO; ADF SELF-CHECK: NO; OPERATING TEMP: -5~+55 CELS. DEGREE; STORING TEMP: -20~+70 CELS. DEGREE; WEIGHT: 470G;PACKING SIZE: 33×23×23CM; HEADGEAR-2000
